1086480

Active

Phoenix Contact

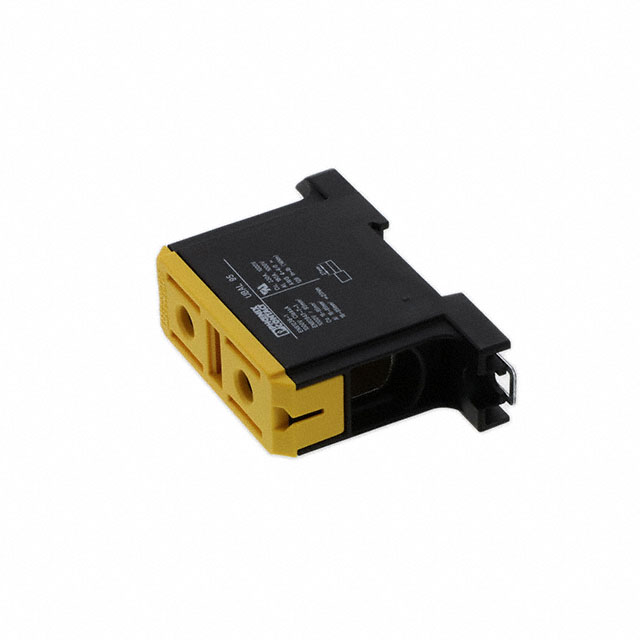

DIN RAIL TERMINAL BLOCKS UBAL 95 FE TERM BLOCK;1POS;220A

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS UBAL 95 FE TERM BLOCK;1POS;220A

Technical Specifications

Parameters and characteristics for this part

Specification	1086480

Color	Yellow
Current - IEC	220 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length	27 mm
Terminal - Width [y]	25.1 mm
Termination Style	Screw
Type	Feed Through
Voltage - IEC	1 kV
Wire Gauge or Range - AWG [Max]	4 AWG
Wire Gauge or Range - AWG [Min]	4 aught AWG

DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A

Part	Termination Style	Number of Positions	Color	Number of Levels	Current - IEC	Terminal - Width [y]	Stripping Length	Material - Insulation	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - IEC	Type	Material Flammability Rating	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	For Use With/Related Products
Phoenix Contact 1086480	Screw	2	Yellow	1	220 A	25.1 mm	27 mm	Nylon Polyamide (PA)	4 AWG	4 aught AWG	1 kV	Feed Through	UL94 V-0
Phoenix Contact 1086470	Screw	2	Brown	1	145 A	19.2 mm	23 mm	Nylon Polyamide (PA)	6 AWG	1 aught AWG	1 kV	Feed Through	UL94 V-0	6 mm²	50 mm²
Phoenix Contact 1086468	Screw	2	Green	1	145 A	19.2 mm	23 mm	Nylon Polyamide (PA)	6 AWG	1 aught AWG	1 kV	Feed Through	UL94 V-0	6 mm²	50 mm²
Phoenix Contact 1086505	Screw	2	Gray	1	380 A	37.5 mm	43 mm	Nylon Polyamide (PA)	300 AWG	3 aught AWG	1 kV	Feed Through	UL94 V-0	35 mm²	240 mm²
Phoenix Contact 1086508	Screw	2	Black	1	380 A	37.5 mm	43 mm	Nylon Polyamide (PA)	300 AWG	3 aught AWG	1 kV	Feed Through	UL94 V-0	35 mm²	240 mm²
Phoenix Contact 1090037			Yellow									Cover				CLIPLINE UBAL Series
Phoenix Contact 1086465	Screw	2	Gray	1	145 A	19.2 mm	23 mm	Nylon Polyamide (PA)	6 AWG	1 aught AWG	1 kV	Feed Through	UL94 V-0	6 mm²	50 mm²
Phoenix Contact 1086474			Yellow									Cover				CLIPLINE UBAL Series
Phoenix Contact 1086466	Screw	2	Blue	1	145 A	19.2 mm	23 mm	Nylon Polyamide (PA)	6 AWG	1 aught AWG	1 kV	Feed Through	UL94 V-0	6 mm²	50 mm²
Phoenix Contact 1086507	Screw	2	Green	1	380 A	37.5 mm	43 mm	Nylon Polyamide (PA)	300 AWG	3 aught AWG	1 kV	Feed Through	UL94 V-0	35 mm²	240 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A
