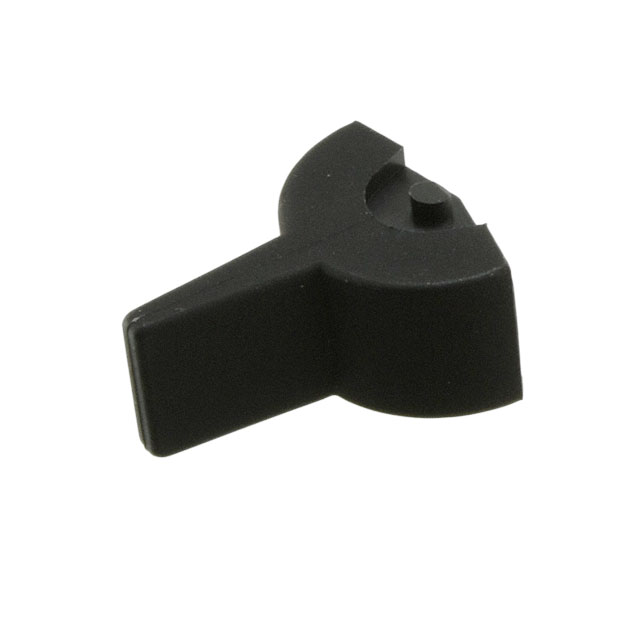

AT4149A

Active

NKK Switches

SWITCH CAP, NKK M, M2T & P SERIES MINIATURE & STANDARD ROCKER SWITCHES, BLACK

Search across all available documentation for this part.

Active

NKK Switches

SWITCH CAP, NKK M, M2T & P SERIES MINIATURE & STANDARD ROCKER SWITCHES, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	AT4149A

Color	Black
For Use With/Related Products	M2, M, P Series
Illumination	Non-Illuminated
Mounting Type	Snap Fit
Shape	Paddle
Size [x]	16.8 mm
Size [y]	9.27 mm
Size [z]	18.8 mm
Switch Type	Rocker

Part	For Use With/Related Products	Illumination	Shape	Mounting Type	Color	Size [x]	Size [y]	Size [z]	Switch Type
NKK Switches AT4149A	M M2 P Series	Non-Illuminated	Paddle	Snap Fit	Black	16.8 mm	9.27 mm	18.8 mm	Rocker
NKK Switches AT4149H	M M2 P Series	Non-Illuminated	Paddle	Snap Fit	Gray	16.8 mm	9.27 mm	18.8 mm	Rocker

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Paddle Rocker Switch Cap Black Snap Fit
