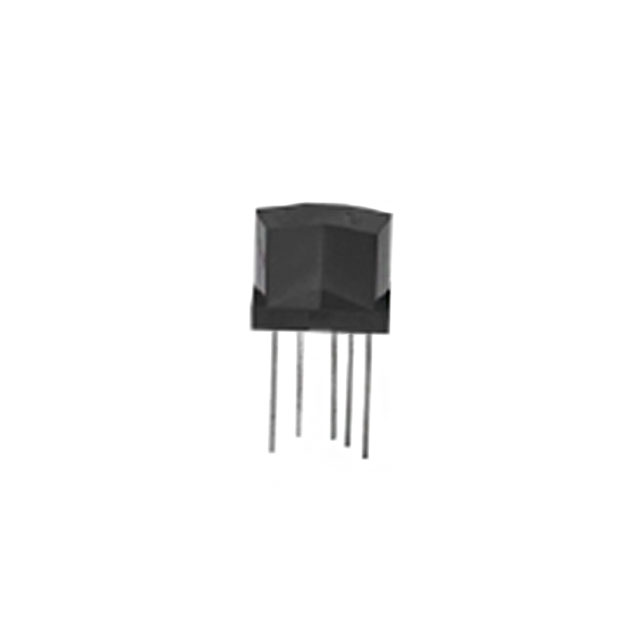

OPB760N
ActiveTT Electronics/Optek Technology
SENSOR REFLCTV 5.58MM TOTEM POLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OPB760N
ActiveTT Electronics/Optek Technology
SENSOR REFLCTV 5.58MM TOTEM POLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB760N |
|---|---|
| Current - Supply | 10 mA |
| Output Configuration | Totem Pole |
| Package / Case | Module |
| Sensing Distance [Max] | 0.22 in |
| Sensing Distance [Max] | 5.59 mm |
| Sensing Distance [Min] | 0.08 in |
| Sensing Distance [Min] | 2.03 mm |
| Sensing Light | Infrared |
| Sensing Method | Reflective |
| Sensing Object | Kodak® Paper |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.29 | |
| 100 | $ 4.99 | |||
| 250 | $ 4.82 | |||
| 500 | $ 4.62 | |||
| 1000 | $ 4.46 | |||
Description
General part information
OPB760 Series
Reflective Optical Sensor 0.080" ~ 0.220" (2.03mm ~ 5.59mm) Kodak® Paper Module
