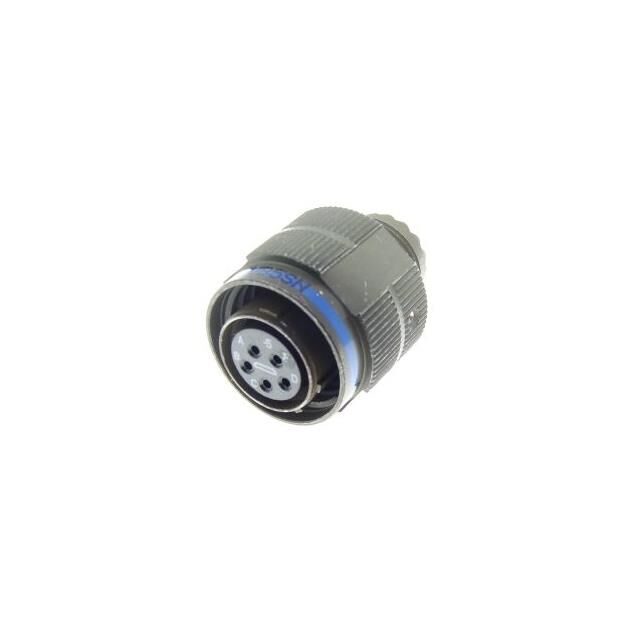

D38999/24WA35SN

Active

Conesys

CONN RCPT FMALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conesys

CONN RCPT FMALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WA35SN

Applications	Aerospace, Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	9
Shell Size, MIL	A
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

Part	Orientation	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Connector Type	Termination	Mounting Feature	Voltage Rating	Insert Material	Applications	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size, MIL	Shell Material	Shell Finish	Contact Finish - Mating	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Material Flammability Rating	Contact Material	Color	Qualification	Primary Material
Conesys D38999/24WA35SN	N	6	1.27 µm	50 µin	Waterproof	Receptacle Female Sockets	Crimp	Bulkhead - Front Side Nut	500 VAC	Thermoplastic	Aerospace Marine Military	9	35	A	Aluminum Alloy	Olive Drab Cadmium	Gold	Military	125 °C	-65 ░C	Shielded	UL94 V-0	Copper Alloy	Olive Drab	MIL-DTL-38999 Series III	Metal
Conesys D38999/24WA35SB	B	6	1.27 µm	50 µin	Environment Resistant	Receptacle Female Sockets	Crimp	Bulkhead - Front Side Nut				9	35		Aluminum Alloy	Olive Drab Cadmium	Gold		347 °F	-65 ░C				Olive Drab		Metal
Conesys D38999/24WA98PA	A		1.27 µm	50 µin	Environment Resistant	Male Pins Receptacle	Crimp	Bulkhead - Front Side Nut				9	98		Aluminum Alloy	Olive Drab Cadmium	Gold		347 °F	-65 ░C				Olive Drab		Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Crimp
