AC01S080WA1R3000
ActiveJAE Electronics

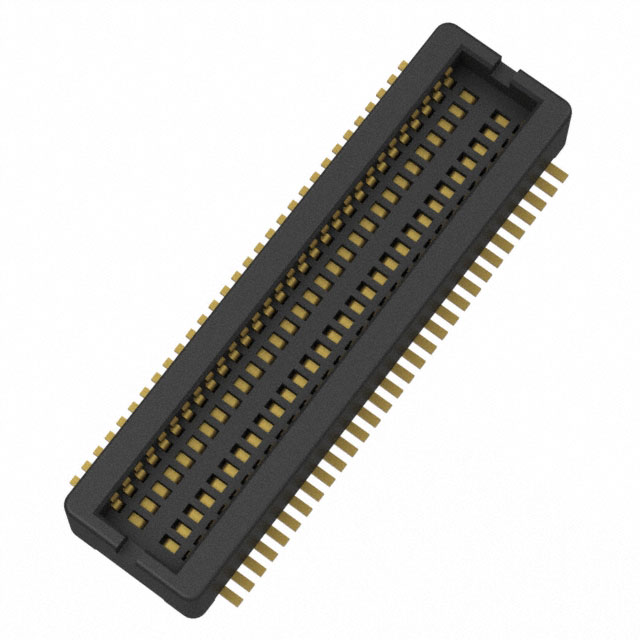

CONN RCPT 80POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AC01S080WA1R3000
ActiveJAE Electronics
CONN RCPT 80POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AC01S080WA1R3000 |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.089 in |
| Height Above Board | 2.26 mm |
| Mated Stacking Heights | 2.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.45 | |
| 10 | $ 4.95 | |||
| 25 | $ 4.69 | |||
| 50 | $ 4.58 | |||
| 100 | $ 4.36 | |||
| 250 | $ 3.81 | |||
| 500 | $ 3.71 | |||
| 1000 | $ 3.16 | |||
| Digi-Reel® | 1 | $ 5.45 | ||
| 10 | $ 4.95 | |||
| 25 | $ 4.69 | |||
| 50 | $ 4.58 | |||
| 100 | $ 4.36 | |||
| 250 | $ 3.81 | |||
| 500 | $ 3.71 | |||
| 1000 | $ 3.16 | |||
| Tape & Reel (TR) | 3000 | $ 2.94 | ||
Description
General part information
AC01S080 Series
80 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
