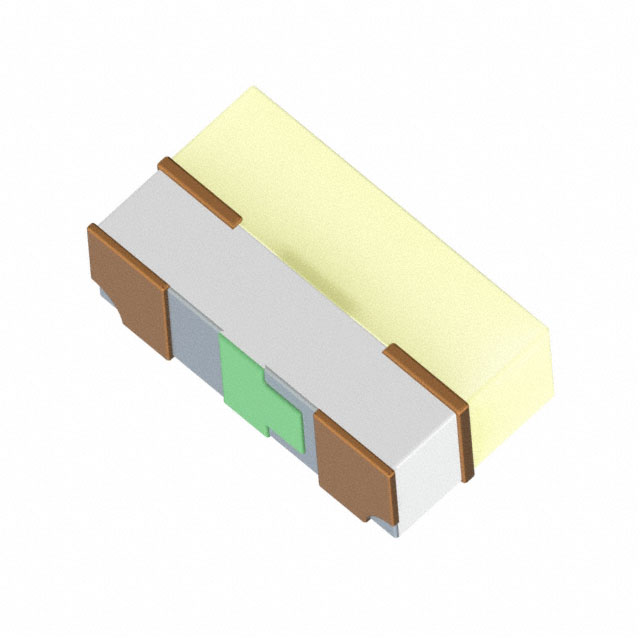

LW VH8G-Q2OO-4M6N-1-5-R18-Z
Activeams-OSRAM USA INC.
LED WHITE DIFFUSED 0402 SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LW VH8G-Q2OO-4M6N-1-5-R18-Z |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] | 0.35 mm |
| Lens Size [x] | 1.1 mm |
| Lens Size [y] | 0.35 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 0.55 mm |
| Supplier Device Package | 0402 |
| Viewing Angle [x] | 105 ° |
| Viewing Angle [y] | 165 ° |
| Voltage - Forward (Vf) (Typ) | 2.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| 2000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| 2000 | $ 0.12 | |||
| Tape & Reel (TR) | 4000 | $ 0.12 | ||
| 8000 | $ 0.11 | |||
| 12000 | $ 0.10 | |||
| 28000 | $ 0.10 | |||
| 100000 | $ 0.09 | |||
Description
General part information
LWVH8G Series
White LED Indication - Discrete 2.85V 2-SMD, No Lead
