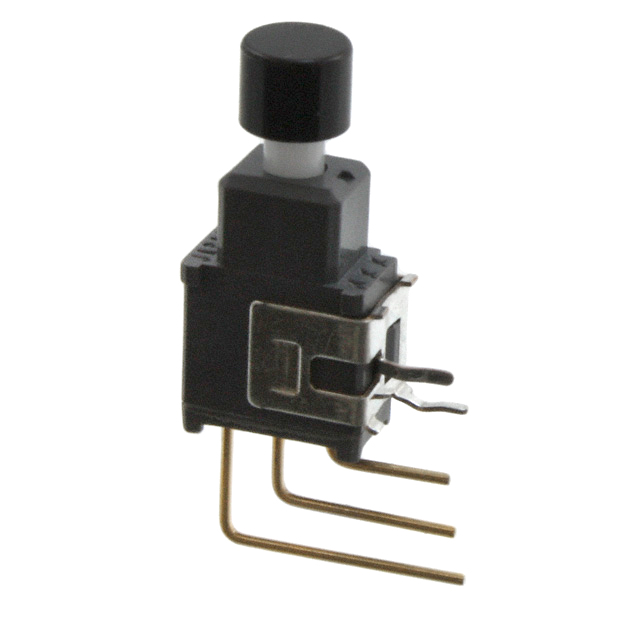

PUSHBUTTON SWITCH, AB SERIES, SPDT, ON-(ON), ROUND, BLACK

Search across all available documentation for this part.

Active

NKK Switches

PUSHBUTTON SWITCH, AB SERIES, SPDT, ON-(ON), ROUND, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	AB15AV-FA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Sealed - Fully
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Rating - DC	Current Rating (Amps)	Type	Actuator Type	Color - Actuator/Cap	Voltage Rating - AC	Circuit	Electrical Life	Switch Function	Termination Style	Mounting Type	Actuator Marking
NKK Switches AB15AV-HB	-30 ░C	85 °C	Sealed - Fully	28 V	0.4 VA	Standard	Button Round	White	28 V	SPDT	50000 Cycles	On-Mom	PC Pin	Right Angle Through Hole Vertical	No Marking
NKK Switches AB15AV-FC	-30 ░C	85 °C	Sealed - Fully	28 V	0.4 VA	Standard	Button Round	Red	28 V	SPDT	50000 Cycles	On-Mom	PC Pin	Right Angle Through Hole Vertical	No Marking
NKK Switches AB15AV-FA	-30 ░C	85 °C	Sealed - Fully	28 V	0.4 VA	Standard	Button Round	Black	28 V	SPDT	50000 Cycles	On-Mom	PC Pin	Right Angle Through Hole Vertical	No Marking
NKK Switches AB15AV-HA	-30 ░C	85 °C	Sealed - Fully	28 V	0.4 VA	Standard	Button Round	Black	28 V	SPDT	50000 Cycles	On-Mom	PC Pin	Right Angle Through Hole Vertical	No Marking
NKK Switches AB15AV1	-30 ░C	85 °C	Sealed - Fully	28 V	0.4 VA	Standard	Plunger for Cap	White	28 V	SPDT	50000 Cycles	On-Mom	PC Pin	Right Angle Through Hole Vertical	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical
