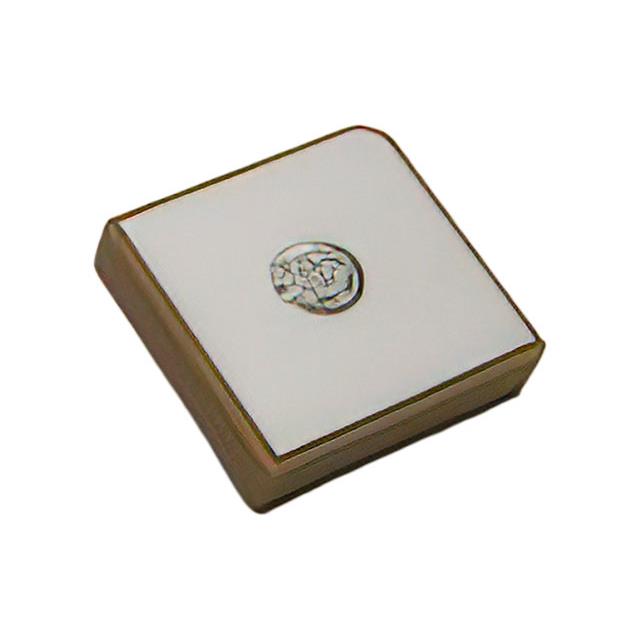

ANTENNA PATCH GPS CP PIN DIAG.
Deep-Dive with AI
Search across all available documentation for this part.
ANT1212B00DT1575S
ActivePulse Electronics
ANTENNA PATCH GPS CP PIN DIAG.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT1212B00DT1575S |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS |
| Frequency (Center/Band) | 1.58 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.583 GHz |
| Frequency Range [Min] | 1.577 GHz |
| Gain | -1.5 dBi |
| Height (Max) | 4 mm |
| Height (Max) [Max] [z] | 0.157 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | Pin |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ANT1212 Series
RF ANTENNA GPS Ceramic Patch Pin Adhesive
