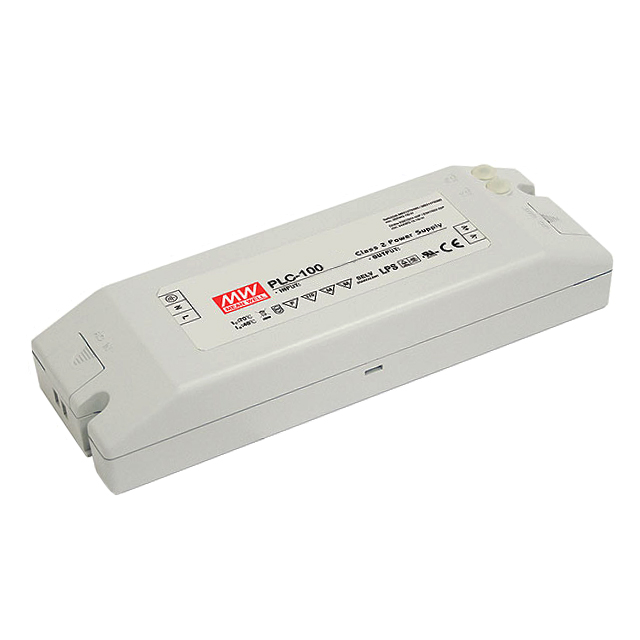

PLC-100-27

Active

MEAN WELL USA Inc.

LED DRIVER CC/CV AC/DC 27V 3.55A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CC/CV AC/DC 27V 3.55A

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Number of Outputs	Voltage - Output	Features	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Power (Watts)	Approval Agency	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Topology	Voltage - Input (Min) [Min]
MEAN WELL USA Inc. PLC-100-36	88 %	1	36 V	OTP OVP SCP	3750 V	7.89 "	35 mm	200.5 mm	69.5 mm	1.38 in	2.74 "	Constant Current Voltage	50 °C	-30 ░C	Wire Leads	95 W	CB CCC CE cURus PSE TUV	264 VAC	2.65 A	Chassis Mount	AC DC Converter	90 VAC
MEAN WELL USA Inc. PLC-100-27	88 %	1	27 V	OTP OVP SCP	3750 V	7.89 "	35 mm	200.5 mm	69.5 mm	1.38 in	2.74 "	Constant Current Voltage	50 °C	-30 ░C	Wire Leads	96 W	CB CCC CE cURus PSE TUV	264 VAC	3.55 A	Chassis Mount	AC DC Converter	90 VAC
MEAN WELL USA Inc. PLC-100-12	83 %	1	12 V	OTP OVP SCP	3750 V	7.89 "	35 mm	200.5 mm	69.5 mm	1.38 in	2.74 "	Constant Current Voltage	50 °C	-30 ░C	Wire Leads	60 W	CB CCC CE cURus PSE TUV	264 VAC	5 A	Chassis Mount	AC DC Converter	90 VAC
MEAN WELL USA Inc. PLC-100-20	88.5 %	1	20 V	OTP OVP SCP	3750 V	7.89 "	35 mm	200.5 mm	69.5 mm	1.38 in	2.74 "	Constant Current Voltage	50 °C	-30 ░C	Wire Leads	96 W	CB CCC CE cURus PSE TUV	264 VAC	4.8 A	Chassis Mount	AC DC Converter	90 VAC
MEAN WELL USA Inc. PLC-100-48	88.5 %	1	48 V	OTP OVP SCP	3750 V	7.89 "	35 mm	200.5 mm	69.5 mm	1.38 in	2.74 "	Constant Current Voltage	50 °C	-30 ░C	Wire Leads	96 W	CB CCC CE PSE TUV UR	264 VAC	2 A	Chassis Mount	AC DC Converter	90 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 43.22

General part information

3.55A 27V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

No documents available
