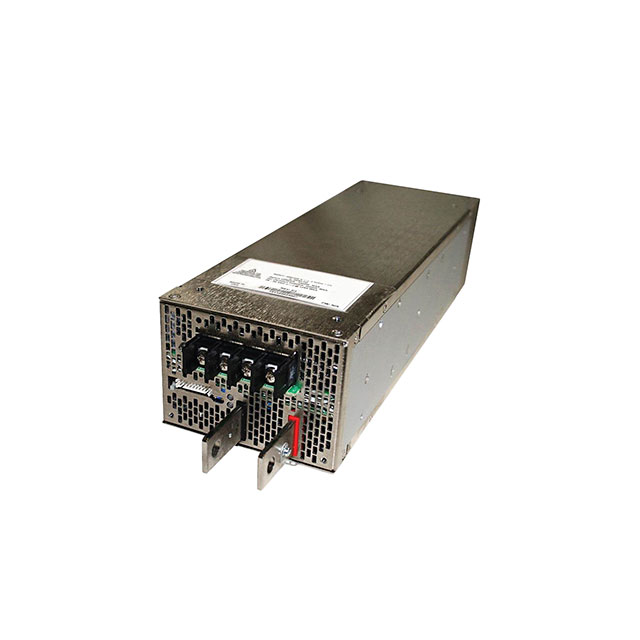

TPS3000-24

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 3.2 KW, 24 V, 134 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 3.2 KW, 24 V, 134 A

Technical Specifications

Parameters and characteristics for this part

Specification	TPS3000-24

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	125 A
Efficiency	92.5 %
Features	Adjustable Output, Standby Output, Remote On/Off, Remote Sense, PFC, Load Sharing, PMBus™
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	3000 W
Size / Dimension [x]	324 mm
Size / Dimension [x]	12.76 in
Size / Dimension [y]	107 mm
Size / Dimension [y]	4.21 in
Size / Dimension [z]	3.32 in
Size / Dimension [z]	84.4 mm
Type	Front End
Voltage - Input [Max]	528 VAC
Voltage - Input [Min]	350 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Current - Output 1	Voltage - Output 1	Efficiency	Voltage - Isolation	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Approval Agency	Features	Power (Watts)	Type	Applications	Voltage - Input [Min]	Voltage - Input [Max]
TDK-LAMBDA TPS3000-24	125 A	24 V	92.5 %	3000 V	Rack Mount	324 mm	3.32 in	84.4 mm	107 mm	4.21 in	12.76 in	1	CE	Adjustable Output Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output	3000 W	Front End	ITE (Commercial)	350 VAC	528 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 24V 350 ~ 528 VAC (3 Phase) Input
