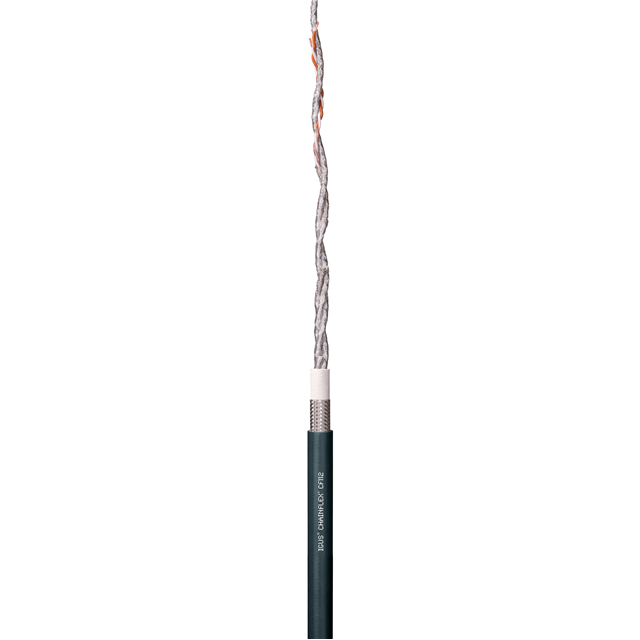

CF112-02-02-02

Active

Igus

MULTI-PAIR 4COND 24AWG GRAY FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF112-02-02-02

Active

Igus

MULTI-PAIR 4COND 24AWG GRAY FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CF112-02-02-02

Cable Type	Multi-Pair
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Features	Abrasion Resistant, Oil Resistant, Flame Retardant, UV Resistant
Jacket (Insulation) Diameter [diameter]	9.5 mm
Jacket (Insulation) Diameter [diameter]	0.374 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	4
Ratings	UL Style 20233
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Industrial, Data
Voltage	300 V
Wire Gauge	24 AWG

CF112 Series

Part	Shield Type	Voltage	Jacket (Insulation) Material	Conductor Material	Conductor Insulation	Shield Coverage	Ratings	Shield Material	Wire Gauge	Features	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Number of Conductors	Jacket Color	Usage
Igus CF112-02-04-02	Braid Foil	300 V	Polyurethane (PU)	Copper Bare	Thermoplastic Elastomer (TPE)	90 % 100 %	UL Style 20233	Aluminum Copper Tinned	24 AWG	Abrasion Resistant Flame Retardant Oil Resistant UV Resistant	Enter Number of Feet in Order Quantity	11 mm	0.433 in	Multi-Pair	8	Gray
Igus CF112-05-04-02	Braid Foil	300 V	Polyurethane (PU)	Copper Bare	Thermoplastic Elastomer (TPE)	90 % 100 %	UL Style 20233	Aluminum Copper Tinned	20 AWG	Abrasion Resistant Flame Retardant Oil Resistant UV Resistant	Enter Number of Feet in Order Quantity	13.01 mm	0.512 in	Multi-Pair	8	Gray
Igus CF112-05-06-02	Braid Foil	300 V	Polyurethane (PU)	Copper Bare	Thermoplastic Elastomer (TPE)	90 % 100 %	UL Style 20233	Aluminum Copper Tinned	20 AWG	Abrasion Resistant Flame Retardant Oil Resistant UV Resistant	Enter Number of Feet in Order Quantity	14.5 mm	0.571 in	Multi-Pair	12	Gray
Igus CF112-02-02-02	Braid Foil	300 V	Polyurethane (PU)	Copper Bare	Thermoplastic Elastomer (TPE)	90 % 100 %	UL Style 20233	Aluminum Copper Tinned	24 AWG	Abrasion Resistant Flame Retardant Oil Resistant UV Resistant	Enter Number of Feet in Order Quantity	9.5 mm	0.374 in	Multi-Pair	4	Gray	Data Industrial
Igus CF112-05-02-02	Braid Foil	300 V	Polyurethane (PU)	Copper Bare	Thermoplastic Elastomer (TPE)	90 % 100 %	UL Style 20233	Aluminum Copper Tinned	20 AWG	Abrasion Resistant Flame Retardant Oil Resistant UV Resistant	Enter Number of Feet in Order Quantity	11.51 mm	0.453 "	Multi-Pair	4	Gray
Igus CF112-02-05-02	Braid Foil	300 V	Polyurethane (PU)	Copper Bare	Thermoplastic Elastomer (TPE)	90 % 100 %	UL Style 20233	Aluminum Copper Tinned	24 AWG	Abrasion Resistant Flame Retardant Oil Resistant UV Resistant	Enter Number of Feet in Order Quantity	11.51 mm	0.453 "	Multi-Pair	10	Gray	Data Industrial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.45
		100	$ 5.24
		500	$ 5.03
		1000	$ 4.39

Description

General part information

CF112 Series

4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil, Braid Enter Number of Feet in Order Quantity
