MP3336GC-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC LED DRVR RGLTR I2C 2A 20WLCSP

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC LED DRVR RGLTR I2C 2A 20WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	MP3336GC-Z

Applications	Camera Flash
Current - Output / Channel [custom]	2 A
Dimming	PWM, I2C
Frequency	1 MHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

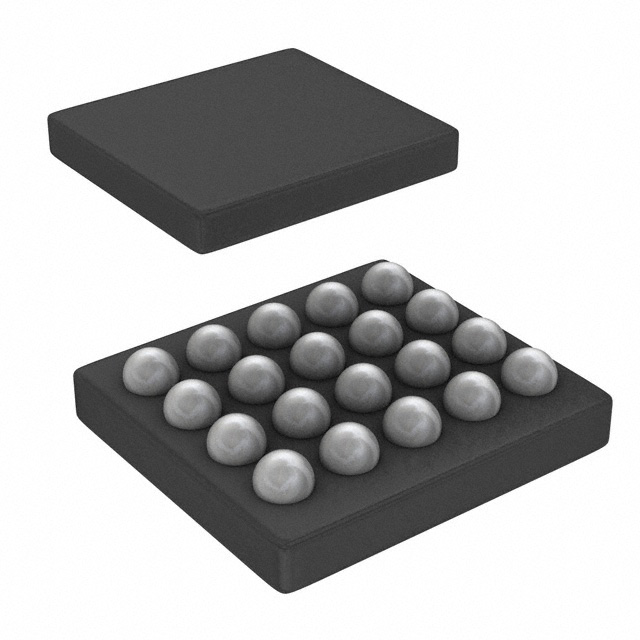

Package / Case	WLCSP, 20-UFBGA
Supplier Device Package	20-WLCSP
Supplier Device Package [x]	1.65
Supplier Device Package [y]	2.05
Topology	Boost
Type	DC DC Regulator
Voltage - Output	5 V
Voltage - Supply (Max)	5.5 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Frequency	Voltage - Output	Type	Current - Output / Channel [custom]	Number of Outputs	Package / Case	Mounting Type	Dimming	Applications	Topology	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Internal Switch(s)	Voltage - Supply (Max)
MONOLITHIC POWER SYSTEMS (MPS) MP3336GC-P	-40 °C	125 ¯C	1 MHz	5 V	DC DC Regulator	2 A	2	20-UFBGA WLCSP	Surface Mount	I2C PWM	Camera Flash	Boost	2.05	20-WLCSP	1.65		5.5 V
MONOLITHIC POWER SYSTEMS (MPS) MP3336GC-Z	-40 °C	125 ¯C	1 MHz	5 V	DC DC Regulator	2 A	2	20-UFBGA WLCSP	Surface Mount	I2C PWM	Camera Flash	Boost	2.05	20-WLCSP	1.65		5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Driver IC 2 Output DC DC Regulator Boost I2C, PWM Dimming 2A 20-WLCSP (1.65x2.05)
