G40H11331HR

Active

Amphenol ICC (Commercial Products)

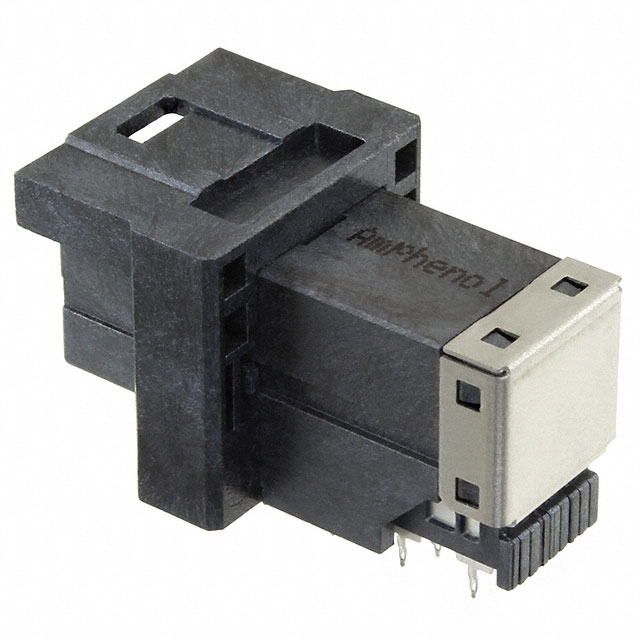

CONN MINI HD SAS RCPT 36POS R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G40H11331HR

Active

Amphenol ICC (Commercial Products)

CONN MINI HD SAS RCPT 36POS R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G40H11331HR

Connector Style	Receptacle
Connector Type	SAS, Mini HD
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Latch Lock
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Termination	Press-Fit

G40H Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Style	Features	Contact Finish	Mounting Type	Connector Type	Termination	Number of Positions [y]	Number of Positions [x]
Amphenol ICC (Commercial Products) G40H13331HR	0.76 Ám	30 Áin	108	Receptacle (1x4)	Latch Lock	Gold	Through Hole Right Angle	Mini HD SAS	Press-Fit
Amphenol ICC (Commercial Products) G40H4232211HR	0.76 Ám	30 Áin	72	Receptacle (1x2)	Board Lock Latch Lock	Gold	Surface Mount	Mini HD SAS	Solder	2	36
Amphenol ICC (Commercial Products) G40H12331HR	0.76 Ám	30 Áin	72	Receptacle (1x2)	Latch Lock	Gold	Through Hole Right Angle	Mini HD SAS	Press-Fit	2	36
Amphenol ICC (Commercial Products) G40H3132212HR	0.76 Ám	30 Áin	36	Receptacle	Board Lock Latch Lock	Gold	Surface Mount	Mini HD SAS	Solder
Amphenol ICC (Commercial Products) G40H11331HR	0.76 Ám	30 Áin	36	Receptacle	Latch Lock	Gold	Through Hole Right Angle	Mini HD SAS	Press-Fit
Amphenol ICC (Commercial Products) G40H4232212HR	0.76 Ám	30 Áin	72	Receptacle (1x2)	Board Lock Latch Lock	Gold	Surface Mount	Mini HD SAS	Solder	2	36
Amphenol ICC (Commercial Products) G40HB132212HR	0.76 Ám	30 Áin	36	Receptacle	Board Lock Latch Lock	Gold	Surface Mount	Mini HD SAS	Solder
Amphenol ICC (Commercial Products) G40HB132211HR	0.76 Ám	30 Áin	36	Receptacle	Board Lock Latch Lock	Gold	Surface Mount	Mini HD SAS	Solder
Amphenol ICC (Commercial Products) G40HD232211HR	0.76 Ám	30 Áin	72	Receptacle (1x2)	Board Lock Latch Lock	Gold	Surface Mount	Mini HD SAS	Solder	2	36
Amphenol ICC (Commercial Products) G40HA2331HR	0.76 Ám	30 Áin	72	Receptacle (1x2)	Latch Holder	Gold	Through Hole Right Angle	Mini HD SAS	Press-Fit	2	36

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.31
		10	$ 3.01
		25	$ 2.85
		40	$ 2.78
		80	$ 2.65
		240	$ 2.32
		480	$ 2.25
		960	$ 1.92
		2400	$ 1.79

Description

General part information

G40H Series

36 Position SAS, Mini HD Receptacle Connector Press-Fit Through Hole, Right Angle

Documents

Technical documentation and resources
