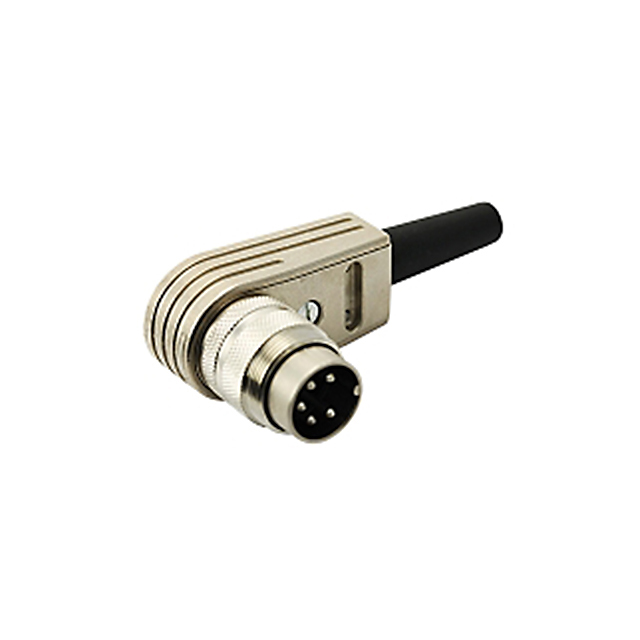

T 3360 058

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	T 3360 058

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Features	Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Voltage Rating	250 VDC

Part	Shell Size - Insert	Color	Primary Material	Voltage Rating	Connector Type	Ingress Protection	Features	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Shell Material	Shielding	Mounting Type	Shell Finish	Contact Finish - Mating
Amphenol Tuchel Industrial T 3360 058	M16-5	Silver	Metal	250 VDC	Male Pins Plug	IP40	Strain Relief	Keyed	100 °C	-40 °C	7 A	Die Cast	Shielded	Free Hanging (In-Line) Right Angle	Nickel	Gold
Amphenol Tuchel Industrial T 3360 028	M16-5	Silver	Metal	250 VDC	Male Pins Plug	IP40	Cable Clamp Strain Relief	Keyed	100 °C	-40 °C	7 A	Die Cast	Shielded	Free Hanging (In-Line)	Nickel	Gold
Amphenol Tuchel Industrial T 3360 020	M16-5(S)	Silver	Metal	250 VDC	Male Pins Plug	IP40	Cable Clamp Stereo Strain Relief	Keyed	100 °C	-40 °C	7 A	Die Cast	Shielded	Free Hanging (In-Line)	Nickel	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 21.76

General part information

5 Position Circular Connector Plug, Male Pins Solder Cup
