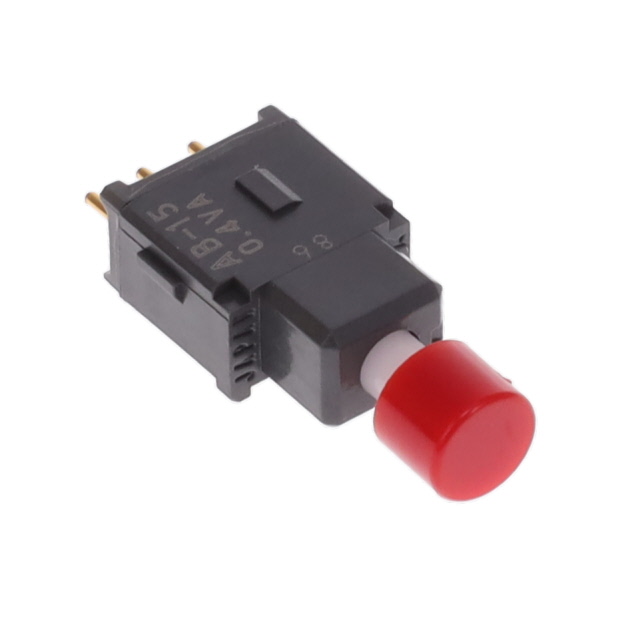

AB15AP-FC
ActiveNKK Switches
SWITCH PUSH BUTTON ON (ON) SPDT ROUND PLUNGER 0.1A 28VAC 28VDC 0.4VA MOMENTARY THRU-HOLE PC PINS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB15AP-FC
ActiveNKK Switches
SWITCH PUSH BUTTON ON (ON) SPDT ROUND PLUNGER 0.1A 28VAC 28VDC 0.4VA MOMENTARY THRU-HOLE PC PINS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB15AP-FC |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AB15AP Series
Pushbutton Switch SPDT Standard Through Hole
