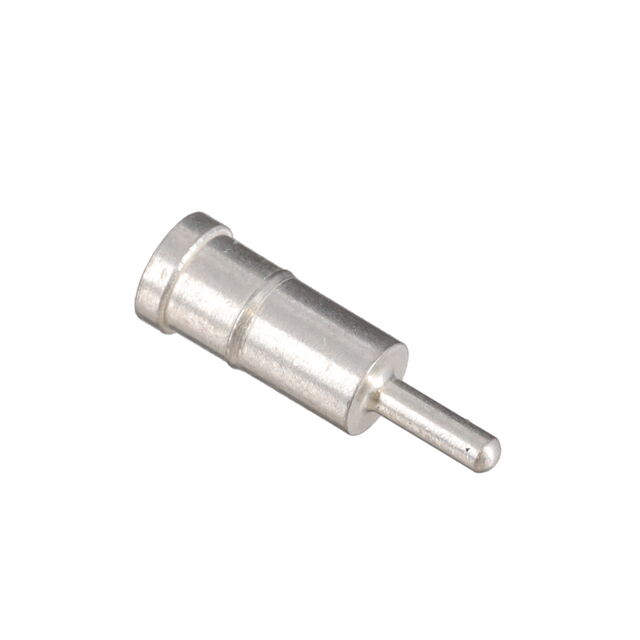

9324-0-15-80-23-27-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
9324-0-15-80-23-27-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9324-0-15-80-23-27-04-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.065 in |
| Accepts Pin Diameter [Max] | 1.65 mm |
| Accepts Pin Diameter [Min] | 0.045 in |
| Accepts Pin Diameter [Min] | 1.14 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.119 in |
| Flange Diameter [diameter] | 3.02 mm |
| Length - Overall [x] | 0.395 in |
| Length - Overall [x] | 10.03 mm |
| Mounting Hole Diameter [diameter] | 0.106 in |
| Mounting Hole Diameter [diameter] | 2.69 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.088 in |
| Pin Hole Diameter [diameter] | 2.24 mm |
| Socket Depth | 0.2 in |
| Socket Depth | 5.08 mm |
| Tail Diameter [diameter] | 0.041 in |
| Tail Diameter [diameter] | 1.04 mm |
| Tail Type | Standard Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.76 | |
| 10 | $ 1.53 | |||
| 25 | $ 1.47 | |||
| 50 | $ 1.44 | |||
| 100 | $ 1.37 | |||
| 250 | $ 1.24 | |||
| 500 | $ 1.14 | |||
| 1000 | $ 0.98 | |||
| 3000 | $ 0.91 | |||
Description
General part information
9324-0 Series
Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) Standard Tail Press-Fit
