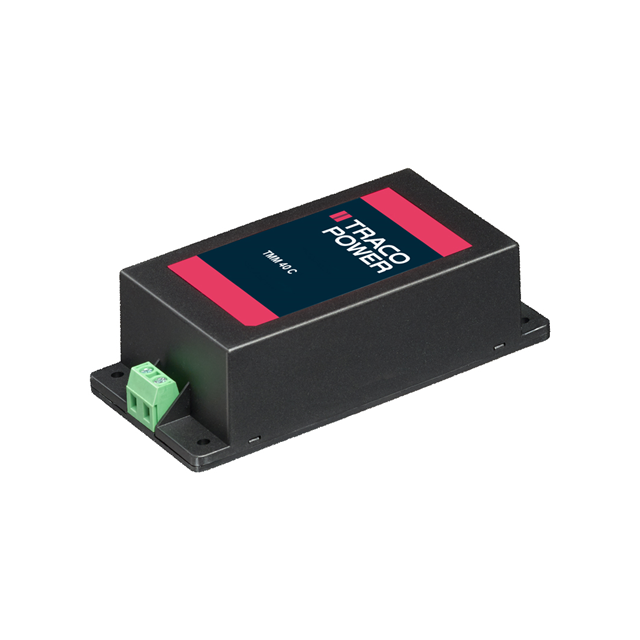

TMM 40115C

Active

Traco Power

AC/DC CONVERTER 15V 40W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 15V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	TMM 40115C

Applications	Industrial, ITE (Commercial), Medical
Approval Agency	cULus, CE, cURus, CB
Current - Output 1	2.66 A
Efficiency	85 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Size / Dimension [x]	4.41 "
Size / Dimension [x]	112 mm
Size / Dimension [y]	63.8 mm
Size / Dimension [y]	2.51 "
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

Part	Minimum Load Required	Mounting Type	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Efficiency	Applications	Voltage - Output 1	Current - Output 1
Traco Power TMM 40115C		Chassis Mount	40 W	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cULus cURus	1.34 in	4.41 "	112 mm	63.8 mm	34 mm	2.51 "	1	Enclosed	Adjustable Output Universal Input	-40 °C	80 ¯C	4000 V	85 %	Industrial ITE (Commercial) Medical	15 V	2.66 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC, 120 ~ 370 VDC Input
