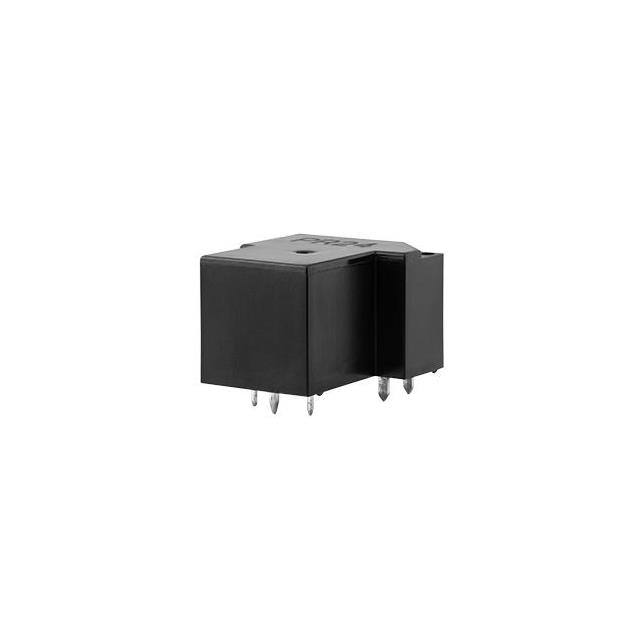

PR24-24V-900-1C
ActiveCUI Devices
POWER RELAY 24VDC 40A SPDT(27.4MM 31.8MM 20MM) THT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR24-24V-900-1C
ActiveCUI Devices
POWER RELAY 24VDC 40A SPDT(27.4MM 31.8MM 20MM) THT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR24-24V-900-1C |
|---|---|
| Coil Current | 37.5 mA |
| Coil Resistance | 640 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 40 A |
| Load - Max Switching | 10000 VA, 1120 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.10 | |
| 10 | $ 1.97 | |||
| 25 | $ 1.75 | |||
| 50 | $ 1.66 | |||
| 100 | $ 1.57 | |||
| 250 | $ 1.54 | |||
Description
General part information
PR24-24V Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
