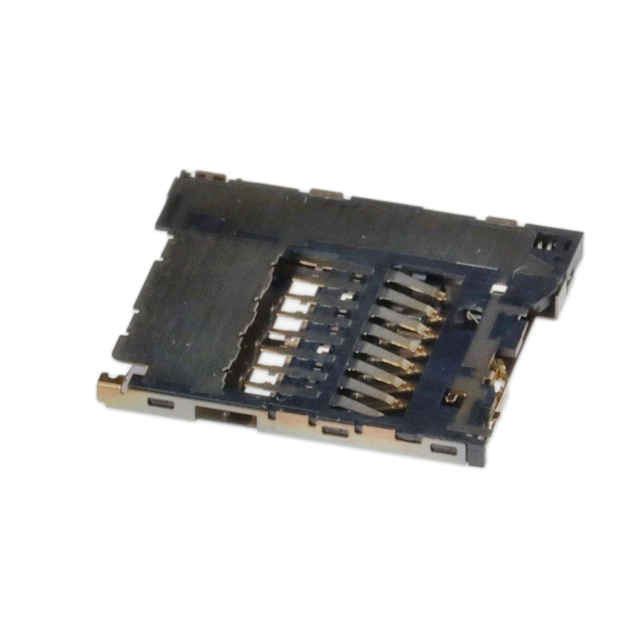

DM3NW-SF-PEJ(800)
ActiveHirose Electric USA, Inc.
PUSH-PUSH TYPE, ULTRA LOW PROFILE, MICROSD CARD CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DM3NW-SF-PEJ(800)
ActiveHirose Electric USA, Inc.
PUSH-PUSH TYPE, ULTRA LOW PROFILE, MICROSD CARD CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DM3NW-SF-PEJ(800) |
|---|---|
| Card Type | Secure Digital - microSD™ |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Ejector Side | Right |
| Features | Switch |
| Height Above Board | 1.15 mm |
| Height Above Board | 0.045 in |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions [custom] | 2 |
| Number of Positions [custom] | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DM3NW Series
10 (8 + 2 Power) Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
