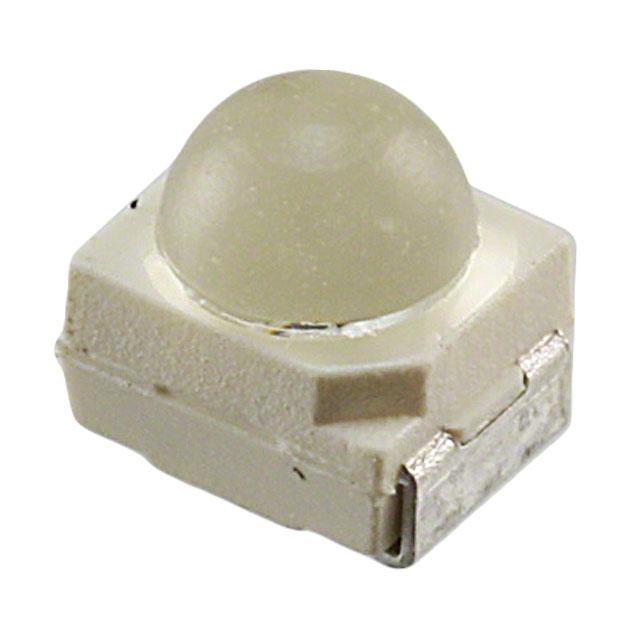

LP T655-Q1R2-25-0-30-R33-Z
Obsoleteams-OSRAM USA INC.
LED GREEN CLEAR 2PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LP T655-Q1R2-25-0-30-R33-Z
Obsoleteams-OSRAM USA INC.
LED GREEN CLEAR 2PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LP T655-Q1R2-25-0-30-R33-Z |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 30 mA |
| Height (Max) [Max] [z] | 3.5 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.6 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 125.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 560 nm |
| Wavelength - Peak | 562 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LPT655 Series
Green 560nm LED Indication - Discrete 2V 2-PLCC
