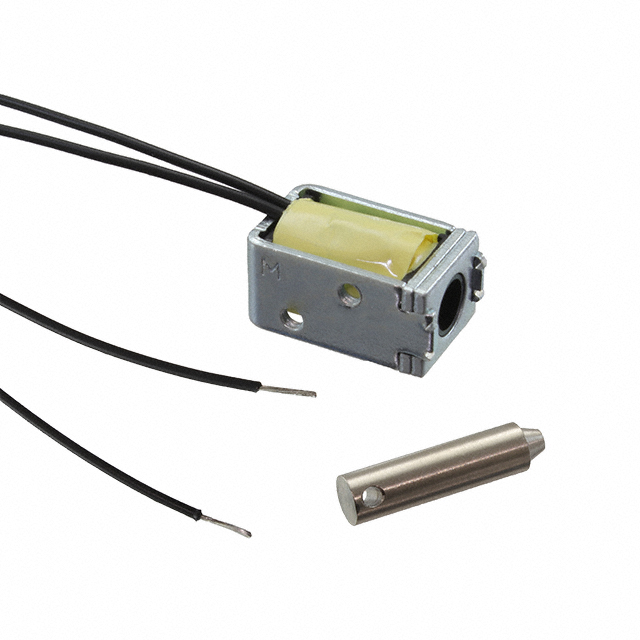

B12-255-B-3
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
OPEN FRAME SOLENOID B12 - 12 VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B12-255-B-3
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
OPEN FRAME SOLENOID B12 - 12 VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B12-255-B-3 |
|---|---|
| DC Resistance (DCR) | 27.7 Ohm |
| Diameter - Shaft [diameter] | 0.157 in |
| Diameter - Shaft [diameter] | 4 mm |
| Duty Cycle | Intermittent |
| Mounting Type | Chassis Mount |
| Power (Watts) | 5.2 W |
| Shaft Detail | Round |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [y] | 0.32 in |
| Size / Dimension [y] | 8.13 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.16 mm |
| Stroke Length | 0.1 in |
| Stroke Length | 2.54 mm |
| Technology | Electromechanical |
| Termination Style | Wire Leads |
| Type | Open Frame (Pull) |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.70 | |
| 10 | $ 17.54 | |||
| 25 | $ 16.75 | |||
| 50 | $ 16.18 | |||
| 100 | $ 15.62 | |||
| 250 | $ 14.92 | |||
| 500 | $ 14.40 | |||
Description
General part information
B12-255 Series
Intermittent Duty Solenoid Open Frame (Pull) Type 0.100" (2.54mm) Stroke 12VDC Chassis Mount
