IS15BSAFP4CF

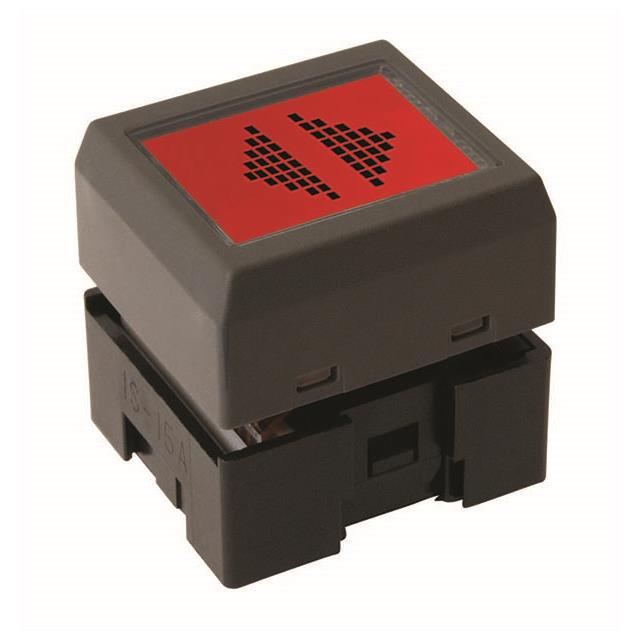

ActivePROGRAMMABLE DISPLAY SWITCH, FRAMELESS, IS SERIES, SPDT, THROUGH HOLE, 100 MA, 12 V, LCD
Deep-Dive with AI
Search across all available documentation for this part.
IS15BSAFP4CF
ActivePROGRAMMABLE DISPLAY SWITCH, FRAMELESS, IS SERIES, SPDT, THROUGH HOLE, 100 MA, 12 V, LCD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IS15BSAFP4CF |
|---|---|
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.1 A, 12 VDC |
| Display Mode | Black and White, FSTN Positive |
| Face Size [x] | 19 mm |
| Face Size [y] | 18 mm |
| LED Color | Green, Red |
| LED Forward Current | 15, 15 mA |
| LED Forward Voltage | 1.9 VDC |
| LED Forward Voltage | 1.9 |
| Mounting Type | Through Hole |
| Operating Force | 173 gf |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -15 °C |
| Pixel Format [x] | 36 |
| Pixel Format [y] | 24 |
| Style | Compact |
| Supply Voltage [Max] | 5.5 V |
| Supply Voltage [Min] | 3 V |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Travel Range | 1.8 mm |
| Type | LCD, Pushbutton |
| Viewing Area [x] | 14.5 mm |
| Viewing Area [y] | 11.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IS15BSAF Series
The IS series wide viewing area SPDT Pushbutton Switch features programmable display graphics for alphanumeric characters and animated sequences. Same outer dimensions of switch and footprint, enabling ease of replacement with current switches. The general brightness of backlight is dynamically controlled in eight steps from dark to bright.
