MB1YSN8H00

Active

Amphenol Sine Systems Corp

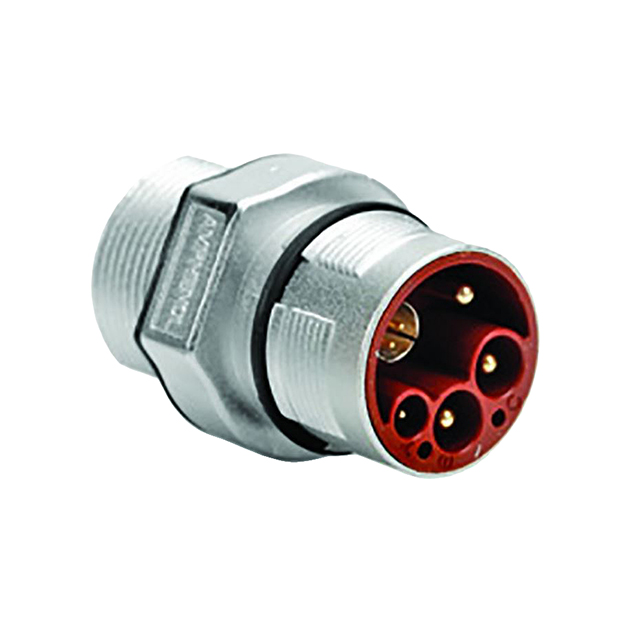

CONN RCPT HSG MALE 5POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 5POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	MB1YSN8H00

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-5
Shielding	Shielded
Type	For Male Pins

Part	Contact Type	Features	Connector Type	Shell Size - Insert	Type	Insert Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Material	Shell Finish	Orientation	Material Flammability Rating	Ingress Protection	Contact Shape	Note
Amphenol Sine Systems Corp MB1YSN8H00	Crimp	Coupling Nut	Receptacle Housing	M23-5	For Male Pins	Polybutylene Terephthalate (PBT)	Silver	-20 C	130 °C	Shielded	Zinc Die Cast	Nickel	Keyed	UL94 V-0	IP67 - Dust Tight Waterproof	Circular	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (1 + 2 Power + 1 Quadrax + PE) Position Circular Connector Receptacle Housing Panel Mount Coupling Nut
