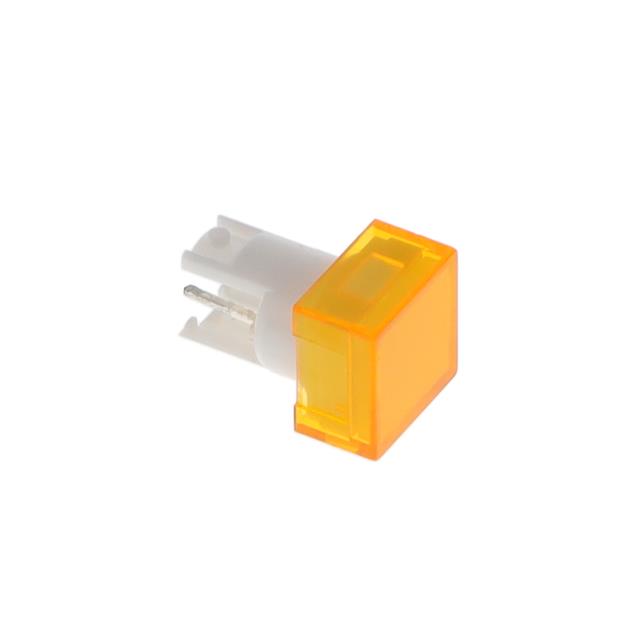

A3DA-500Y

Active

Omron Electronics Inc-EMC Div

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONFIG SW BODY PUSHBUTTON ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	A3DA-500Y

(Select First, Then Apply Filters) Compatible Series	A3D
(Select First, Then Apply Filters) Compatible Series	Omron
Actuator Type	Pushbutton, Square
Illumination	Illuminated - Yellow
Panel Cutout Dimensions [diameter]	8 mm
Requires	Contact Block(s)

Part	Switch Function	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Termination Style	Voltage Rating - DC	Ingress Protection	Electrical Life	Actuator Marking	Actuator Type	Color - Actuator/Cap	Type	Mounting Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Illumination Type, Color	Circuit	Illumination Voltage (Nominal)	Current Rating (Amps)	Illumination	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series	Requires
Omron Electronics Inc-EMC Div A3DA-90A1-00EG	Off-Mom	55 °C	-10 °C	Solder Lug	30 V	IP40	100000 Cycles	No Marking	Button Square	Green	Illuminated Standard	Panel Mount Front	8 mm	1000000 Cycles	Green LED	SPST-NO	2.1 VDC	100 mA
Omron Electronics Inc-EMC Div A3DA-90A1-00ER	Off-Mom	55 °C	-10 °C	Solder Lug	30 V	IP40	100000 Cycles	No Marking	Button Square	Red	Illuminated Standard	Panel Mount Front	8 mm	1000000 Cycles	LED Red	SPST-NO	1.7 VDC	100 mA
Omron Electronics Inc-EMC Div A3DA-500Y									Pushbutton Square				8 mm						Illuminated - Yellow	A3D	Omron	Contact Block(s)
Omron Electronics Inc-EMC Div A3DA-500R									Pushbutton Square				8 mm							A3D	Omron	Contact Block(s)
Omron Electronics Inc-EMC Div A3DA-5201
Omron Electronics Inc-EMC Div A3DA-501B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Pushbutton, Square Illuminated - Yellow
