71ADF36-02-1-AJN
ActiveGrayhill Inc.

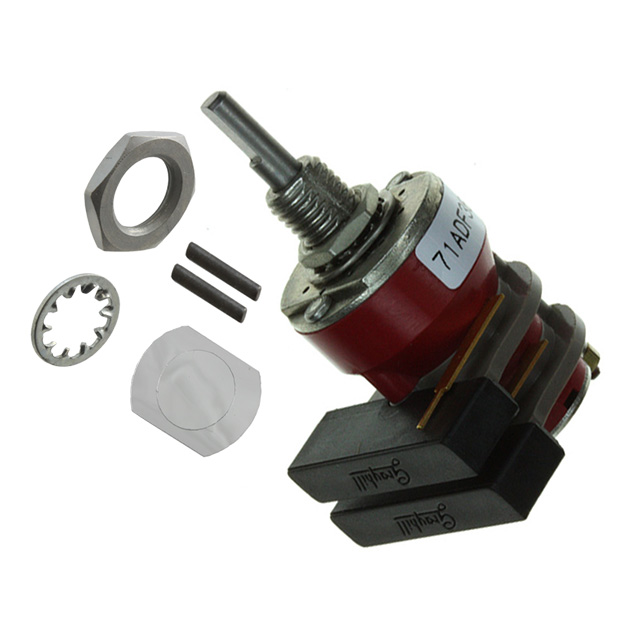

SWITCH ROTARY 2-10POS 250MA 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
71ADF36-02-1-AJN
ActiveGrayhill Inc.
SWITCH ROTARY 2-10POS 250MA 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 71ADF36-02-1-AJN |
|---|---|
| Actuator Length [x] | 9.53 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 3.17 mm |
| Angle of Throw | 36 ° |
| Circuit per Deck | SP10T |
| Contact Material | Silver Alloy |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 250 mA |
| Depth Behind Panel [z] | 24.87 mm |
| Index Stops | Adjustable |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Decks | 2 |
| Number of Poles per Deck | 1 |
| Termination Style | PC Pin |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.85 | |
| 5 | $ 42.83 | |||
| 10 | $ 40.20 | |||
| 25 | $ 36.85 | |||
| 50 | $ 34.45 | |||
| 100 | $ 32.30 | |||
| 250 | $ 31.10 | |||
Description
General part information
71ADF36 Series
Rotary Switch 2 ~ 10 Position SP10T 250mA (AC/DC) 115 VAC Panel Mount, Through Hole, Right Angle
