1001-1571-002

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE CRIMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE CRIMP T

Technical Specifications

Parameters and characteristics for this part

Specification	1001-1571-002

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Housing Color	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Cable Group	Mounting Type	Dielectric Material	Body Finish	Body Material	Mating Cycles	Frequency - Max [Max]	Number of Ports	Impedance	Center Contact Plating	Contact Termination	Center Contact Material	Connector Type	Shield Termination	Voltage Rating	Cable Group
Radiall USA, Inc. 1001-1571-004	Gold	0.25 dB	-65 ░C	165 °C	SMC	RG-180	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Gold	Brass	500	10 GHz	1	50 Ohms	Gold	Crimp	Brass	Jack Male Pin	Crimp
Radiall USA, Inc. 1001-1571-002	Gold	0.25 dB	-65 ░C	165 °C	SMC	RG-178	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Gold	Brass	500	10 GHz	1	50 Ohms	Gold	Solder	Brass	Jack Male Pin	Crimp	250 VDC	196

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 27.93

General part information

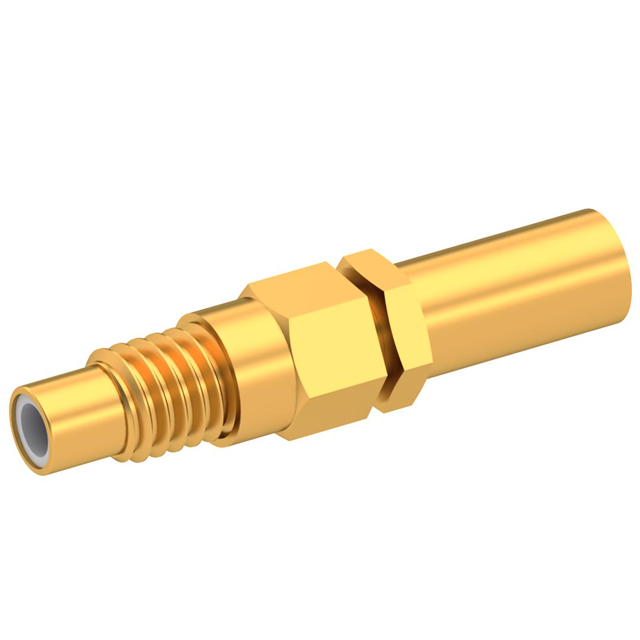

SMC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
