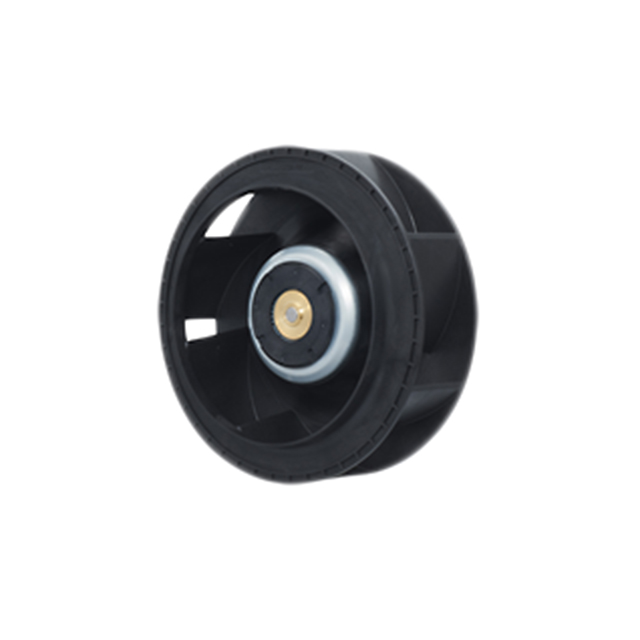

9TGA48P0G001

Active

Sanyo Denki America Inc.

FAN IMP MTRZD 175X69MM 48VDC

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN IMP MTRZD 175X69MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	9TGA48P0G001

Air Flow	622 CFM
Air Flow	17.42 mł/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	3.5 A
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	Varies Based on Temperature
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	80 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	168 W
RPM	5700 RPM
Size / Dimension [diameter]	175 mm Dia
Static Pressure	4.42 in H2O
Static Pressure	1100 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	36 VDC
Weight	725.7 g
Weight	1.6 lbs
Width [x]	69 mm

Part	Width [x]	Material - Blade	Approval Agency	Air Flow	Air Flow	Power (Watts)	Termination	Size / Dimension [diameter]	Features	Bearing Type	Noise	Current Rating (Amps)	Weight	Weight	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Material - Frame	Lifetime @ Temp.	RPM	Voltage - Rated [custom]
Sanyo Denki America Inc. 9TGA48P0G001	69 mm	Plastic	cURus TUV	622 CFM	17.42 mł/min	168 W	4 Wire Leads	175 mm Dia	PWM Control Speed Sensor (Tach)	Ball	80 dB(A)	3.5 A	725.7 g	1.6 lbs	4.42 in H2O	1100 Pa	72 VDC	36 VDC	-20 °C	70 °C	-20 C	70 °C	Motorized Impellers	Aluminum	Varies Based on Temperature	5700 RPM	48 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 622.0 CFM (17.42mł/min) 4 Wire Leads
