C45-3DC-72P

Active

Orion Fans

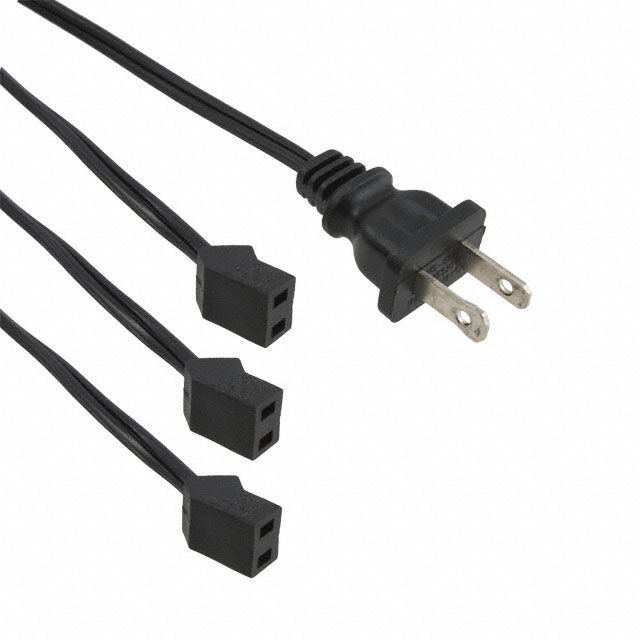

FAN CORD 45DEG 3POS 72" AC PLUG

Search across all available documentation for this part.

Active

Orion Fans

FAN CORD 45DEG 3POS 72" AC PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	C45-3DC-72P

1st Connector	Fan Terminal Receptacle 45° (3)
2nd Connector	NEMA 1-15 Plug
Approval Agency Marking	cURus, TUV
Cord Type	SPT-1
Features	Daisy Chain
Length	72 in
Length	1.83 m
Number of Conductors	2
Style	Female Receptacle to Male Plug
Wire Gauge	18 AWG

Part	2nd Connector	Style	Wire Gauge	1st Connector	Length	Length [x]	Features	Approval Agency Marking	Cord Type	Number of Conductors	Length
Orion Fans C45-3DC-24	Open Wires	Female Receptacle to Cable	18 AWG	Fan Terminal Receptacle 45° (3)	304.8 mm	12 in	Daisy Chain	cURus TUV	SPT-1	2
Orion Fans C45-3DC-72P	NEMA 1-15 Plug	Female Receptacle to Male Plug	18 AWG	Fan Terminal Receptacle 45° (3)	1.83 m		Daisy Chain	cURus TUV	SPT-1	2	72 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Power Cord Fan Terminal Receptacle 45° (3) 72.0" (1.83m) NEMA 1-15 Plug
