50.640 PA/FL

Active

Jacob GmbH

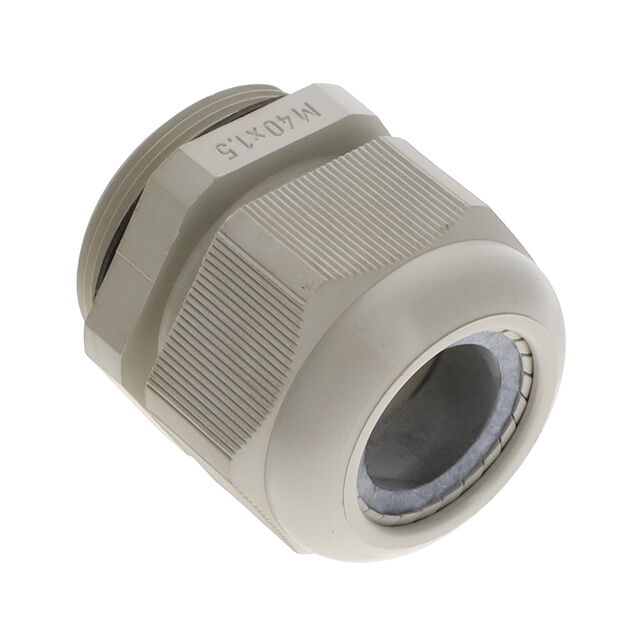

CABLE GLAND 19-28MM M40 POLYAMID

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

50.640 PA/FL

Active

Jacob GmbH

CABLE GLAND 19-28MM M40 POLYAMID

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50.640 PA/FL

Color	Gray
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	28 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.102 in
Outside Cable Diameter (Min) [Min] [diameter]	19 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.748 in
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M40x1.5
Type	Cable Gland

50.64 Series

Part	Thread Length	Thread Length	Color	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Includes	Ingress Protection	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Jacob GmbH 50.640 M/EMVD	8 mm	0.315 in	Silver	M40x1.5	19 mm	0.748 in	100 °C	-40 °C	27 mm	1.063 in	Brass Nickel Plated	O-Ring Seal	IP68 - Dust Tight Waterproof	Cable Gland
Jacob GmbH 50.640M/EMV/L	13 mm	0.512 in	Silver	M40x1.5	19 mm	0.748 in	100 °C	-40 °C	27 mm	1.063 in	Brass Nickel Plated	O-Ring Seal	IP68 - Dust Tight Waterproof	Cable Gland
Jacob GmbH 50.640 PA/SWL	18.01 mm	0.709 in	Black	M40x1.5	19 mm	0.748 in	100 °C	-40 °C				Sealing Ring	IP68 - Dust Tight Waterproof	Cable Gland	28 mm	1.102 in
Jacob GmbH 50.640 M/EMV	8 mm	0.315 in	Silver	M40x1.5	19 mm	0.748 in	100 °C	-40 °C	27 mm	1.063 in	Brass Nickel Plated	O-Ring Seal	IP68 - Dust Tight Waterproof	Cable Gland
Jacob GmbH 50.640 ES	8 mm	0.315 in	Silver	M40x1.5	19 mm	0.748 in	100 °C	-40 °C	27 mm	1.063 in	Stainless Steel	O-Ring Seal	IP68 - Dust Tight Waterproof	Cable Gland
Jacob GmbH 50.640 PA/FL	10 mm	0.394 in	Gray	M40x1.5	19 mm	0.748 in	100 °C	-40 °C				Sealing Ring	IP68 - Dust Tight Waterproof	Cable Gland	28 mm	1.102 in
Jacob GmbH 50.640 PA/RSW	10 mm	0.394 in	Black	M40x1.5			100 °C	-40 °C				Sealing Ring	IP68 - Dust Tight Waterproof	Cable Gland	28 mm	1.102 in	0.63 in	16 mm
Jacob GmbH 50.640PA/R7035	10 mm	0.394 in	Gray	M40x1.5			100 °C	-40 °C				Sealing Ring	IP68 - Dust Tight Waterproof	Cable Gland	28 mm	1.102 in	0.63 in	16 mm
Jacob GmbH 50.640 M	8 mm	0.315 in	Silver	M40x1.5	19 mm	0.748 in	100 °C	-40 °C	27 mm	1.063 in	Brass Nickel Plated	O-Ring Seal	IP68 - Dust Tight Waterproof	Cable Gland
Jacob GmbH 50.640 PA7035L	18.01 mm	0.709 in	Gray	M40x1.5	19 mm	0.748 in	100 °C	-40 °C				Sealing Ring	IP68 - Dust Tight Waterproof	Cable Gland	28 mm	1.102 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.26
		10	$ 3.85
		30	$ 3.64
		50	$ 3.55
		100	$ 3.37
		250	$ 3.13

Description

General part information

50.64 Series

Cable Gland Polyamide (PA6), Nylon 6 M40x1.5 Gray
