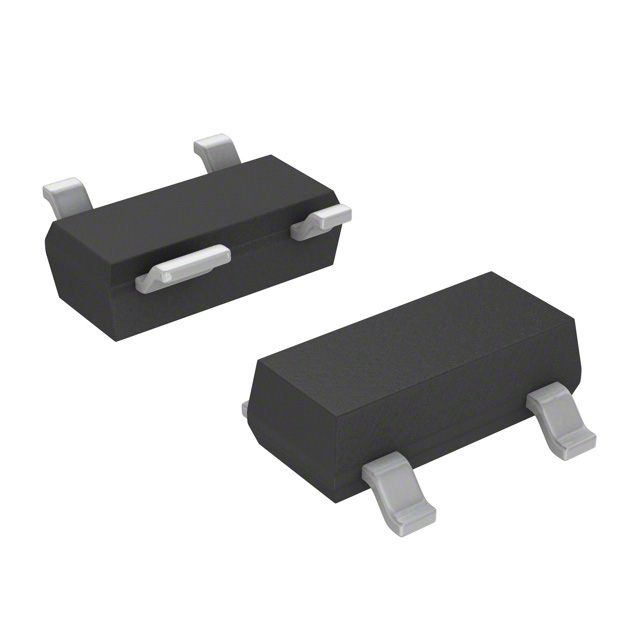

NE68139R-T1-A

Obsolete

CEL

RF TRANS NPN 10V 9GHZ SOT143R

Search across all available documentation for this part.

Obsolete

CEL

RF TRANS NPN 10V 9GHZ SOT143R

Technical Specifications

Parameters and characteristics for this part

Specification	NE68139R-T1-A

Current - Collector (Ic) (Max) [Max]	65 mA
Frequency - Transition	9 GHz
Gain	13.5 dB
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f) [Max]	2 dB
Noise Figure (dB Typ @ f) [Min]	1.2 dB
Operating Temperature	150 °C
Package / Case	SOT-143R
Power - Max [Max]	200 mW
Supplier Device Package	SOT-143R
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	10 V

Part	Gain	Operating Temperature	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Package / Case	Frequency - Transition	Power - Max [Max]	Noise Figure (dB Typ @ f)	Supplier Device Package	Noise Figure (dB Typ @ f) [Min]	Noise Figure (dB Typ @ f) [Max]
CEL NE68139-T1-A	13.5 dB	150 °C	65 mA	10 V	Surface Mount	50	NPN	TO-253-4 TO-253AA	9 GHz	200 mW	1.2 dB	SOT-143
CEL NE68139R-T1	13.5 dB	150 °C	65 mA	10 V	Surface Mount		NPN	SOT-143R	9 GHz	200 mW		SOT-143R	1.2 dB	2 dB
CEL NE68139R-T1-A	13.5 dB	150 °C	65 mA	10 V	Surface Mount		NPN	SOT-143R	9 GHz	200 mW		SOT-143R	1.2 dB	2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 10V 65mA 9GHz 200mW Surface Mount SOT-143R
