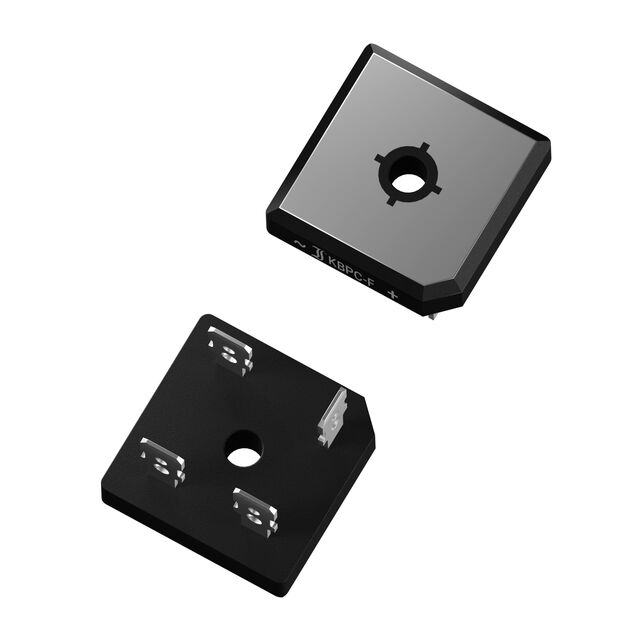

KBPC3514WP

Active

Diotec Semiconductor

BRIDGE RECT 1P 1.4KV 35A KBPC WP

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1P 1.4KV 35A KBPC WP

Technical Specifications

Parameters and characteristics for this part

Specification	KBPC3514WP

Current - Average Rectified (Io)	35 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	4-Square, KBPC WP
Supplier Device Package	KBPC WP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1.4 kV

Part	Supplier Device Package	Diode Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Package / Case
Diotec Semiconductor KBPC3514WP	KBPC WP	Single Phase	150 °C	-50 °C	1.4 kV	35 A	1.1 V	Through Hole	Standard	10 µA	4-Square KBPC WP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1.4 kV Through Hole KBPC WP
