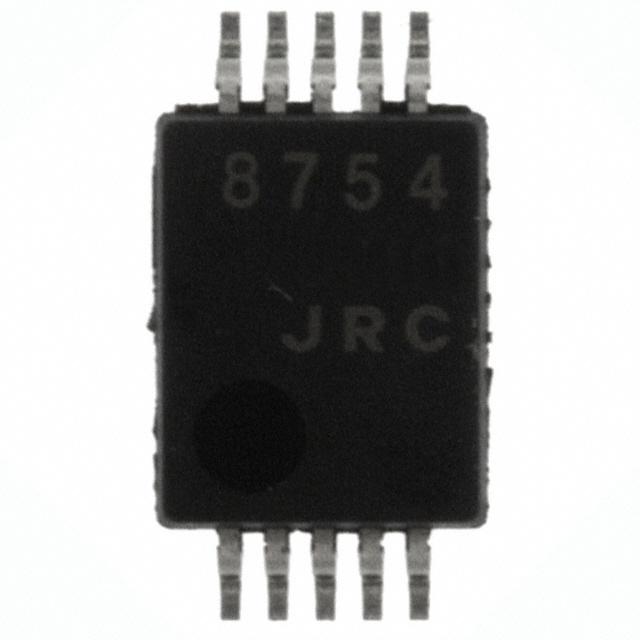

NJU8754V-TE2

Obsolete

Nisshinbo Micro Devices Inc

IC AMP CLASS D MONO 1.2W 10SSOP

Search across all available documentation for this part.

Obsolete

Nisshinbo Micro Devices Inc

IC AMP CLASS D MONO 1.2W 10SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	NJU8754V-TE2

Features	Mute, Short-Circuit Protection, Standby, PWM
Max Output Power x Channels @ Load	1.2 W
Max Output Power x Channels @ Load [x]	1
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	1-Channel (Mono)
Package / Case	10-LFSOP
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Supplier Device Package	10-SSOP
Type	Class D
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	2.7 V

Part	Type	Package / Case [x]	Package / Case [y]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Output Type	Features	Mounting Type	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [x]	Operating Temperature [Max]	Operating Temperature [Min]
Nisshinbo Micro Devices Inc NJU8754V-TE2	Class D	0.173 in	4.4 mm	10-LFSOP	5.25 V	2.7 V	10-SSOP	1-Channel (Mono)	Mute PWM Short-Circuit Protection Standby	Surface Mount	1.2 W	1	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class D 10-SSOP
