SPM7054VT-1R0M-D

Active

EPCOS - TDK Electronics

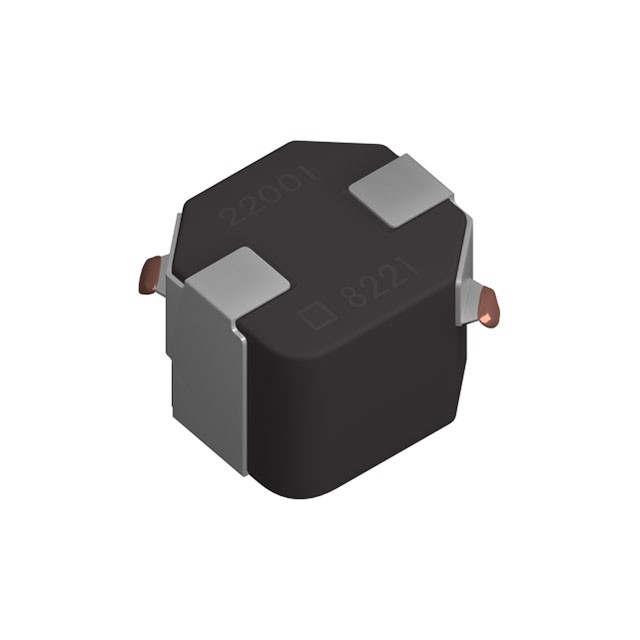

POW INDUCTOR, AEC-Q200, 1UH, SHLD, 25.7A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCertificate of Conformity EN REACH SVHC: Safe Use Data EN

SPM7054VT-1R0M-D

Active

EPCOS - TDK Electronics

POW INDUCTOR, AEC-Q200, 1UH, SHLD, 25.7A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsCertificate of Conformity EN REACH SVHC: Safe Use Data EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPM7054VT-1R0M-D

Current - Saturation (Isat)	19.3 A
Current Rating (Amps)	14.9 A
DC Resistance (DCR)	4.6 mOhm
Height - Seated (Max) [Max] [z]	5.4 mm
Height - Seated (Max) [Max] [z]	0.213 in
Inductance	1 µH
Inductance Frequency - Test	100 kHz
Material - Core	Metal Composite
Mounting Type	Surface Mount
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.295 in
Size / Dimension [x]	7.5 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Supplier Device Package	7054
Tolerance	20 %
Type	Wirewound, Drum Core

SPM7054VT Series

Part	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Type	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Shielding	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Material - Core	Ratings	Supplier Device Package	Package / Case	DC Resistance (DCR)	Current Rating (Amps)	Current - Saturation (Isat)
EPCOS - TDK Electronics SPM7054VT-100M-D	10 µH	155 °C	-55 °C	Drum Core Wirewound	100 kHz	0.295 in	7.5 mm	7 mm	0.276 in	Shielded	20 %	5.4 mm	0.213 in	Surface Mount	Metal Composite	AEC-Q200	7054	Nonstandard	36.9 mOhm	5.5 Amps	8.7 A
EPCOS - TDK Electronics SPM7054VT-150M-D	15 µH	155 °C	-55 °C	Drum Core Wirewound	100 kHz	0.295 in	7.5 mm	7 mm	0.276 in	Shielded	20 %	5.4 mm	0.213 in	Surface Mount	Metal Composite	AEC-Q200	7054	Nonstandard	54.8 mOhm	4.5 A	5 A
EPCOS - TDK Electronics SPM7054VT-3R3M-D	3.3 µH	155 °C	-55 °C	Drum Core Wirewound	100 kHz	0.295 in	7.5 mm	7 mm	0.276 in	Shielded	20 %	5.4 mm	0.213 in	Surface Mount	Metal Composite	AEC-Q200	7054	Nonstandard	11.2 mOhm	9.5 A	13.7 A
EPCOS - TDK Electronics SPM7054VT-680M-D	68 µH	155 °C	-55 °C	Drum Core Wirewound	100 kHz	0.295 in	7.5 mm	7 mm	0.276 in	Shielded	20 %	5.4 mm	0.213 in	Surface Mount	Metal Composite	AEC-Q200	7054	Nonstandard	222 mOhm	2.1 A	3.1 A
EPCOS - TDK Electronics SPM7054VT-1R0M-D	1 µH	155 °C	-55 °C	Drum Core Wirewound	100 kHz	0.295 in	7.5 mm	7 mm	0.276 in	Shielded	20 %	5.4 mm	0.213 in	Surface Mount	Metal Composite	AEC-Q200	7054	Nonstandard	4.6 mOhm	14.9 A	19.3 A
EPCOS - TDK Electronics SPM7054VT-470M-D	47 µH	155 °C	-55 °C	Drum Core Wirewound	100 kHz	0.295 in	7.5 mm	7 mm	0.276 in	Shielded	20 %	5.4 mm	0.213 in	Surface Mount	Metal Composite	AEC-Q200	7054	Nonstandard	162 mOhm	2.5 A	3.4 A
EPCOS - TDK Electronics SPM7054VT-101M-D	100 µH	155 °C	-55 °C	Drum Core Wirewound	100 kHz	0.295 in	7.5 mm	7 mm	0.276 in	Shielded	20 %	5.4 mm	0.213 in	Surface Mount	Metal Composite	AEC-Q200	7054	Nonstandard	348 mOhm	1.8 A	2.4 A
