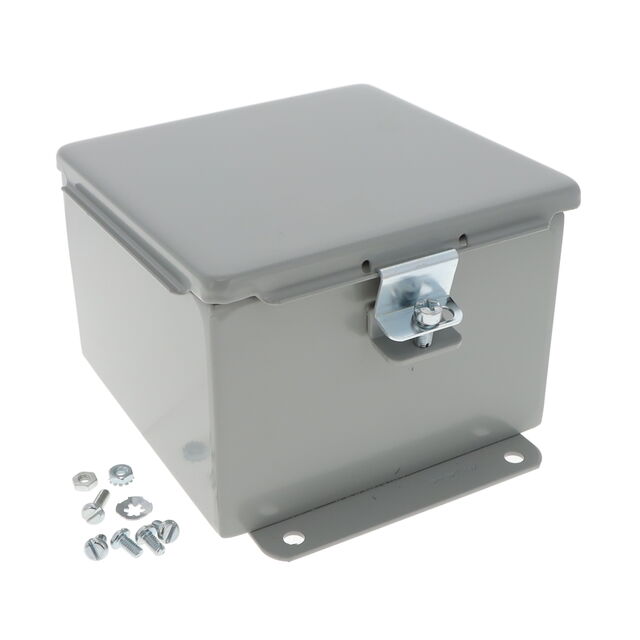

A606LP

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STL 5.98"L X 5.98"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STL 5.98"L X 5.98"W

Technical Specifications

Parameters and characteristics for this part

Part	Color	Container Type	Height [z]	Height [z]	Thickness	Area (L x W)	Area (L x W)	Weight	Weight	Design	Ratings	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Weight
Hoffman Enclosures, Inc. A606CHNFSS6	Natural	Junction Box	4.016 in	102 mm	16 Gauge	35.8 in²	231 cm²	4.4 lbs	2 kg	Hinged Door Lid	12 13 4 4X IP66 NEMA 3R UL-508A	Sealing Gasket Stainless Steel Hinge Wall Mount	5.984 in	5.984 in	152 mm	152 mm
Hoffman Enclosures, Inc. A606LP	Gray	Junction Box	4.016 in	102 mm	14 Gauge	35.8 in²	231 cm²	4 lbs	1.8 kg	Cover Included	50E IP65 NEMA 12 NEMA 13 UL-50	Sealing Gasket Wall Mount	5.984 in	5.984 in	152 mm	152 mm	Metal Steel
Hoffman Enclosures, Inc. A606CHNF	Gray	Junction Box	4.016 in	102 mm	16 Gauge	35.8 in²	231 cm²	4.3 lbs	2 kg	Hinged Door Lid		Stainless Steel Hinges Wall Mount	5.984 in	5.984 in	152 mm	152 mm	Metal Steel
Hoffman Enclosures, Inc. A606CHNFSS	Natural	Junction Box	4.016 in	102 mm	16 Gauge	35.8 in²	231 cm²	4.1 lbs	1.9 kg	Hinged Door Lid	12 13 4 4X IP66 NEMA 3R UL-508A	Sealing Gasket Stainless Steel Hinge Wall Mount	5.984 in	5.984 in	152 mm	152 mm
Hoffman Enclosures, Inc. A606CHAL	Natural	Junction Box	4.016 in	102 mm		35.8 in²	231 cm²		1.8 lbs	Hinged Door Lid	12 13 50E IP65 NEMA 3RX UL-50	Sealing Gasket Wall Mount	5.984 in	5.984 in	152 mm	152 mm	Aluminum Metal	816.5 g
Hoffman Enclosures, Inc. A606CHQR	Gray	Junction Box	4.016 in	102 mm	16 Gauge	35.8 in²	231 cm²	4 lbs	1.8 kg	Hinged Door Lid	IP65 NEMA 12 NEMA 13 UL-508A	Sealing Gasket Wall Mount	5.984 in	5.984 in	152 mm	152 mm	Metal Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Steel Gray Cover Included 5.984" L x 5.984" W (152.00mm x 152.00mm) X 4.016" (102.00mm)
