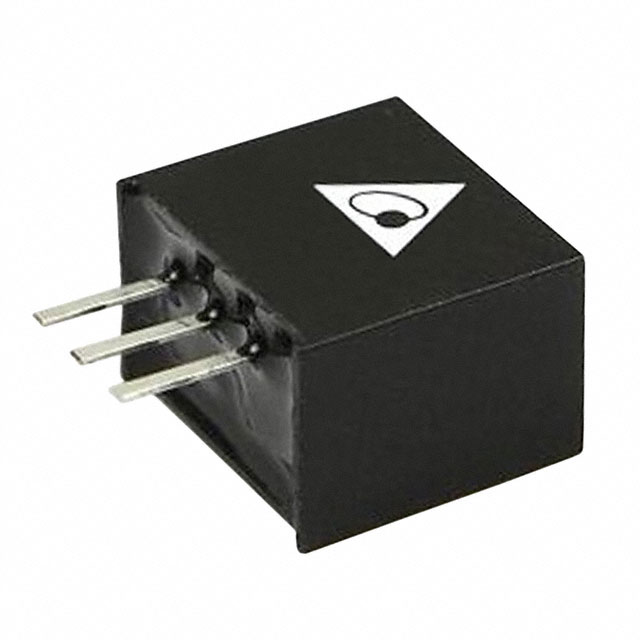

PM05S018A

Active

Delta Electronics

DC DC CONVERTER 1.8V 900MW

Search across all available documentation for this part.

Active

Delta Electronics

DC DC CONVERTER 1.8V 900MW

Technical Specifications

Parameters and characteristics for this part

Specification	PM05S018A

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 mA
Features	OTP, SCP, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	0.9 W
Size / Dimension [x]	11.5 mm
Size / Dimension [x]	0.45 in
Size / Dimension [y]	0.3 "
Size / Dimension [y]	7.6 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	32 V
Voltage - Input (Min) [Min]	4.75 V
Voltage - Output 1	1.8 V

Part	Package / Case	Power (Watts)	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Voltage - Output 1
Delta Electronics PM05S033A	3-SIP Module	2 W	OCP OTP SCP	Linear Regulator Replacement	90 °C	-40 °C	Through Hole	4.75 V	500 mA	1	32 V	ITE (Commercial)	11.5 mm	0.3 "	0.4 "	0.45 in	7.6 mm	10.2 mm	91 %	3.3 V
Delta Electronics PM05S018A	3-SIP Module	0.9 W	OCP OTP SCP	Linear Regulator Replacement	90 °C	-40 °C	Through Hole	4.75 V	500 mA	1	32 V	ITE (Commercial)	11.5 mm	0.3 "	0.4 "	0.45 in	7.6 mm	10.2 mm		1.8 V
Delta Electronics PM05S150A	3-SIP Module	8 W	OCP OTP SCP	Linear Regulator Replacement	90 °C	-40 °C	Through Hole	18 V	500 mA	1	32 V	ITE (Commercial)	11.5 mm	0.3 "	0.4 "	0.45 in	7.6 mm	10.2 mm	97 %	15 V
Delta Electronics PM05S120A	3-SIP Module	6 W	OCP OTP SCP	Linear Regulator Replacement	90 °C	-40 °C	Through Hole	15 V	500 mA	1	32 V	ITE (Commercial)	11.5 mm	0.3 "	0.4 "	0.45 in	7.6 mm	10.2 mm	97 %	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 6.53

General part information

Linear Regulator Replacement DC DC Converter 1 Output 1.8V 500mA 4.75V - 32V Input
