JBXER0G02FSSDSR

Active

Souriau-Sunbank by Eaton

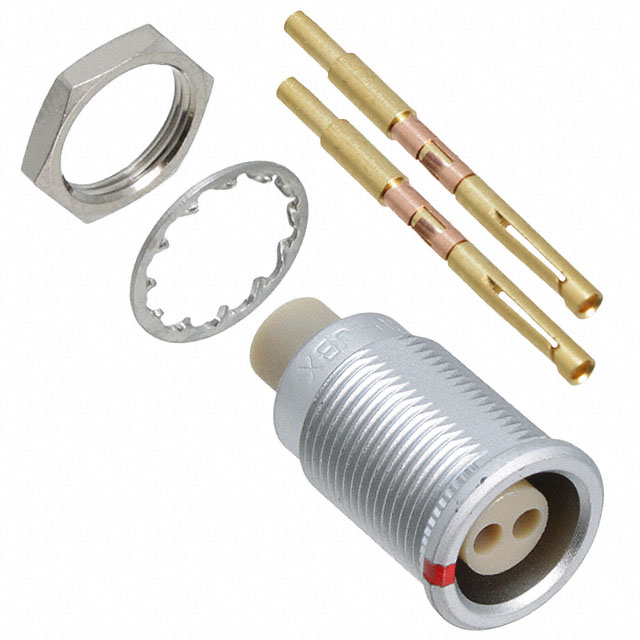

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JBXER0G02FSSDSR

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JBXER0G02FSSDSR

Applications	Instrumentation, Medical, Telecommunications, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP40
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded
Voltage Rating	660 V

JBXER0G Series

Part	Orientation	Shell Finish	Fastening Type	Shell Material	Mounting Feature	Current Rating (Amps)	Applications	Insert Material	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Primary Material	Connector Type	Shielding	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Color	Ingress Protection	Contact Finish - Mating	Mounting Type
Souriau-Sunbank by Eaton JBXER0G04FCSDSR	G	Chrome over Nickel	Push-Pull	Brass	Bulkhead - Rear Side Nut	7 A	Industrial Instrumentation Medical Telecommunications	Polyetheretherketone (PEEK)	Crimp	0.5 µm	19.7 µin	4	Metal	Receptacle Female Sockets	Shielded	660 V	125 °C	-40 °C	UL94 V-0	Silver	IP40	Gold
Souriau-Sunbank by Eaton JBXER0G03FCSDSR	G	Chrome over Nickel	Push-Pull	Brass	Bulkhead - Rear Side Nut	8 A	Industrial Instrumentation Medical Telecommunications	Polyetheretherketone (PEEK)	Crimp	0.5 µm	19.7 µin		Metal	Receptacle Female Sockets	Shielded	600 V	125 °C	-40 °C	UL94 V-0	Silver	IP40	Gold
Souriau-Sunbank by Eaton JBXER0G04MSSDSR	G	Chrome over Nickel	Push-Pull	Brass	Bulkhead - Rear Side Nut	7 A	Industrial Instrumentation Medical Telecommunications	Polyetheretherketone (PEEK)		0.5 µm	19.7 µin	4	Metal	Male Pins Receptacle	Shielded	660 V	125 °C	-40 °C	UL94 V-0	Silver	IP40	Gold
Souriau-Sunbank by Eaton JBXER0G05MSSDSR	G	Chrome over Nickel	Push-Pull	Brass	Bulkhead - Rear Side Nut	6.5 A	Industrial Instrumentation Medical Telecommunications	Polyetheretherketone (PEEK)		0.5 µm	19.7 µin		Metal	Male Pins Receptacle	Shielded	400 V	125 °C	-40 °C	UL94 V-0	Silver	IP40	Gold
Souriau-Sunbank by Eaton JBXER0G05FSNDSR	G	Black Chrome over Nickel	Push-Pull	Brass	Bulkhead - Rear Side Nut	6.5 A	Industrial Instrumentation Medical Telecommunications	Polyetheretherketone (PEEK)		0.5 µm	19.7 µin		Metal	Receptacle Female Sockets	Shielded	400 V	125 °C	-40 °C	UL94 V-0	Black	IP40	Gold
Souriau-Sunbank by Eaton JBXER0G04MWSDSR	G	Chrome over Nickel	Push-Pull	Brass	Bulkhead - Rear Side Nut	7 A	Industrial Instrumentation Medical Telecommunications	Polyetheretherketone (PEEK)		0.5 µm	19.7 µin	4	Metal	Male Pins Receptacle	Shielded	660 V	125 °C	-40 °C	UL94 V-0	Silver	IP40	Gold
Souriau-Sunbank by Eaton JBXER0G02FSSDSR	G	Chrome over Nickel	Push-Pull	Brass	Bulkhead - Rear Side Nut	10 A	Industrial Instrumentation Medical Telecommunications	Polyetheretherketone (PEEK)		0.5 µm	19.7 µin	2	Metal	Receptacle Female Sockets	Shielded	660 V	125 °C	-40 °C	UL94 V-0	Silver	IP40	Gold
Souriau-Sunbank by Eaton JBXER0G02FCSDSR	G	Chrome over Nickel	Push-Pull	Brass	Bulkhead - Rear Side Nut	10 A	Industrial Instrumentation Medical Telecommunications	Polyetheretherketone (PEEK)	Crimp	0.5 µm	19.7 µin	2	Metal	Receptacle Female Sockets	Shielded	660 V	125 °C	-40 °C	UL94 V-0	Silver	IP40	Gold
Souriau-Sunbank by Eaton JBXER0G02FSNDSR	G	Black Chrome over Nickel	Push-Pull	Brass	Bulkhead - Rear Side Nut	10 A	Industrial Instrumentation Medical Telecommunications	Polyetheretherketone (PEEK)		0.5 µm	19.7 µin	2	Metal	Receptacle Female Sockets	Shielded	660 V	125 °C	-40 °C	UL94 V-0	Black	IP40	Gold
Souriau-Sunbank by Eaton JBXER0G03FPSDSR	G	Chrome over Nickel	Push-Pull	Brass	Bulkhead - Rear Side Nut	8 A	Industrial Instrumentation Medical Telecommunications	Polyetheretherketone (PEEK)	Solder	0.5 µm	19.7 µin		Metal	Receptacle Female Sockets	Shielded	600 V	125 °C	-40 °C	UL94 V-0	Silver	IP40	Gold	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.74
		10	$ 21.66
		25	$ 20.73
		50	$ 20.06
		100	$ 19.39
		250	$ 18.32
		500	$ 17.79

Description

General part information

JBXER0G Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
