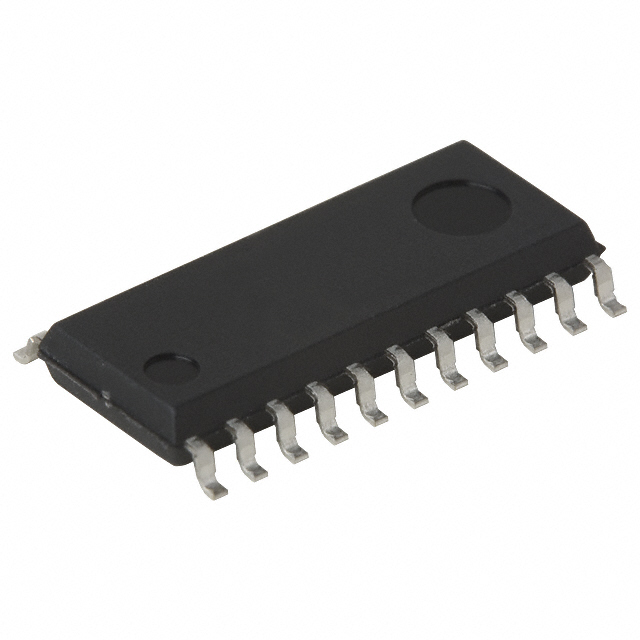

BA6822F-E2
ObsoleteRohm Semiconductor
IC DRVR DOT/BAR DISPLAY 22SOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BA6822F-E2
ObsoleteRohm Semiconductor
IC DRVR DOT/BAR DISPLAY 22SOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BA6822F-E2 |
|---|---|
| Configuration | Dot/Bar Display |
| Current - Supply | 10 mA |
| Digits or Characters [x] | 2 Points |
| Digits or Characters [y] | 12 Points |
| Display Type | LED |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 22-SOIC |
| Package / Case [x] | 0.213 in |
| Package / Case [y] | 5.4 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BA6822 Series
LED Driver 22-SOP
