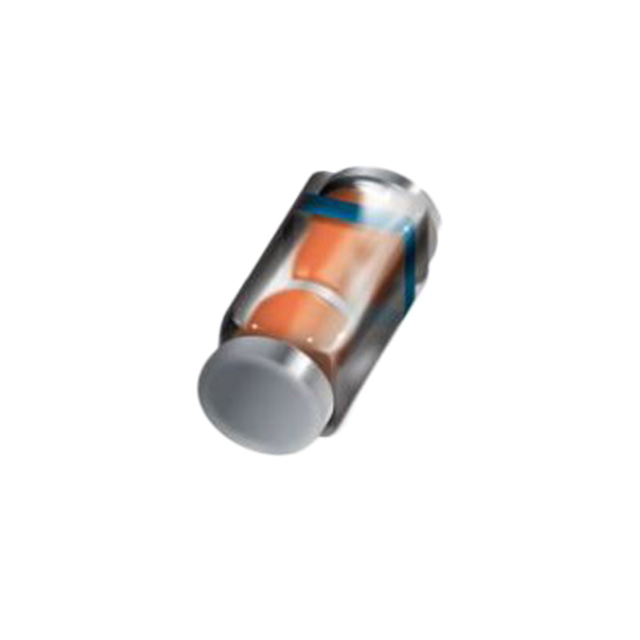

LS4148 L0G

Active

Taiwan Semiconductor Corporation

DIODE GP 75V 450MA MINI MELF

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE GP 75V 450MA MINI MELF

Technical Specifications

Parameters and characteristics for this part

Specification	LS4148 L0G

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	450 mA
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Speed	200 mA, 500 ns
Supplier Device Package	Mini MELF
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Speed	Current - Average Rectified (Io)	Supplier Device Package	Mounting Type	Current - Reverse Leakage @ Vr	Technology
Taiwan Semiconductor Corporation LS4148 L0G	175 ░C	-65 C	4 pF	75 V	1 V	200 mA 500 ns	450 mA	Mini MELF	Surface Mount	5 µA	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 75 V 450mA Surface Mount Mini MELF
