09300160730

Active

HARTING Technology Group

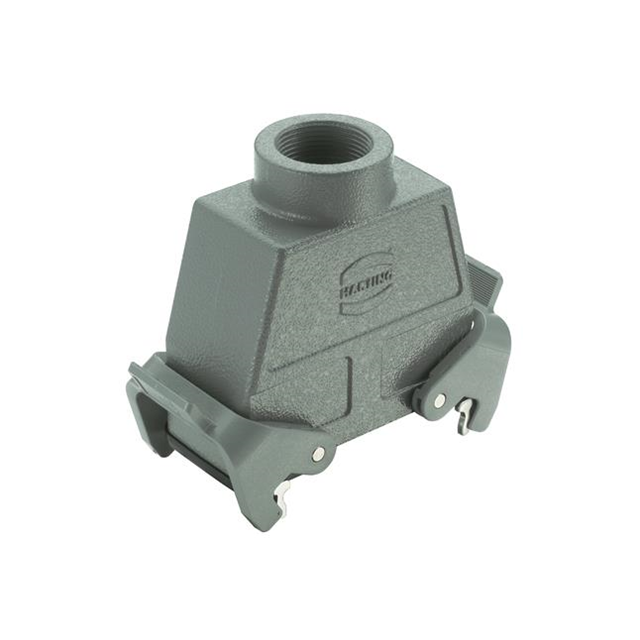

HEAVY DUTY CONNECTOR, COUPLER, PG21 TOP ENTRY, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09300160730

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, COUPLER, PG21 TOP ENTRY, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300160730

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	78.4 mm
Size / Dimension [z]	3.087 "
Style	Bottom Entry
Thread Size	PG21

09300160 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Color	Thread Size	Housing Finish	Style	Size	Ingress Protection	Lock Location	Features
HARTING Technology Group 09300160462	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	Aluminum Die Cast	125 °C	-40 °C	Hood	Gray	PG21	Powder Coated	Dual Top Entry	16 B	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom
HARTING Technology Group 09300160392							Aluminum Die Cast	125 °C	-40 °C	Base - Panel Mount	Gray		Powder Coated	Bottom Entry	16 B	IP66	Locking Clip (2) on Base Bottom
HARTING Technology Group 09300160255	4.606 "	2.244 "	57 mm	117 mm	80.8 mm	3.181 "	Aluminum Die Cast	125 °C	-40 °C	Base - Box Mount	Gray	PG21	Powder Coated	Side Entry	16 B	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Cover
HARTING Technology Group 09300160231	4.606 "	2.244 "	57 mm	117 mm	80.8 mm	3.181 "	Aluminum Die Cast	125 °C	-40 °C	Base - Box Mount	Gray	PG29	Powder Coated	Side Entry	16 B	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom
HARTING Technology Group 09300160296	4.606 "	2.244 "	57 mm	117 mm	80.8 mm	3.181 "	Aluminum Die Cast	125 °C	-40 °C	Base - Box Mount	Gray	PG29	Powder Coated	Side Entry	16 B	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom
HARTING Technology Group 09300160730	3.681 "	1.693 in	43 mm	93.5 mm	78.4 mm	3.087 "	Aluminum Die Cast	125 °C	-40 °C	Hood - Coupling	Gray	PG21	Powder Coated	Bottom Entry	16 B	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood Top	Cable to Cable
HARTING Technology Group 09300160541	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	Aluminum Die Cast	125 °C	-40 °C	Hood	Gray	PG29	Powder Coated	Side Entry	16 B	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom
HARTING Technology Group 09300160317	4.449 "	1.709 in	43.4 mm	113 mm	28.9 mm	1.138 "	Aluminum Die Cast	125 °C	-40 °C	Base - Panel Mount	Gray		Powder Coated	Bottom Entry	16 B	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood	Cover
HARTING Technology Group 09300160295	4.606 "	2.244 "	57 mm	117 mm	80.8 mm	3.181 "	Aluminum Die Cast	125 °C	-40 °C	Base - Box Mount	Gray	PG21	Powder Coated	Side Entry	16 B	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom
HARTING Technology Group 09300160301	4.449 "	1.709 in	43.4 mm	113 mm	28.9 mm	1.138 "	Aluminum Die Cast	125 °C	-40 °C	Base - Panel Mount	Gray		Powder Coated	Bottom Entry	16 B	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.47
		10	$ 41.72
		25	$ 40.12
		50	$ 38.78
		100	$ 36.64
		250	$ 35.57
Newark	Each	1	$ 49.20
		5	$ 48.42
		10	$ 44.87
		25	$ 43.92
		50	$ 41.28

Description

General part information

09300160 Series

Hood - Coupling Connector Bottom Entry PG21 16B IP65 - Dust Tight, Water Resistant
