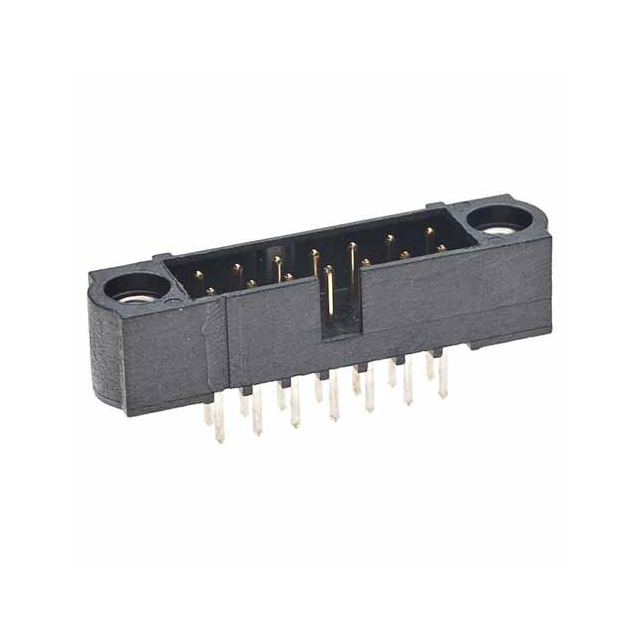

M80-5004442

Active

Harwin Inc.

22+22 POS. MALE DIL VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-0110001 M80-001 +1

M80-5004442

Active

Harwin Inc.

22+22 POS. MALE DIL VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-0110001 M80-001 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5004442

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	0.3 µm
Contact Finish Thickness - Post	12 µin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Keying Slot, Mating Flange
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.3 mm, 7.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 VAC

M80-500 Series

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Shape	Features	Contact Finish - Post	Contact Material	Mounting Type	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Finish - Mating	Material Flammability Rating	Contact Type	Insulation Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Current Rating (Amps)	Insulation Color	Contact Length - Post	Contact Length - Post	Wire Type	Cable Termination	Contact Finish	Pitch [x]	Pitch [x]	Color	Mated Stacking Heights	Contact Finish Thickness - Post	Fastening Type
Harwin Inc. M80-5004405	Solder	-55 °C	125 °C	800 VAC	Circular	Keying Slot Mating Flange	Gold	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	44	29.5 Áin	0.75 Ám	Header	29.5 µin	0.75 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.13 in	3.3 mm
Harwin Inc. M80-5000000MN-02-334-00-000						Jackscrews Polarizing Key							1			Coaxial Male Pin		2			Plug													Coaxial	Crimp	Gold	4 mm	0.157 in	Black
Harwin Inc. M80-5001042	Solder	-55 °C	125 °C	120 VDC	Circular	Keying Slot Mating Flange	Tin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	10	29.5 Áin	0.75 Ám	Header		3 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.128 "	3.25 mm							7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin
Harwin Inc. M80-5000000MB-03-336-00-000						Jackscrews Polarizing Key			Free Hanging (In-Line)				1			Coaxial Male Pin					Plug													Coaxial	Crimp	Gold	4 mm	0.157 in	Black
Harwin Inc. M80-5001022	Solder	-55 °C	125 °C	120 VDC	Circular	Keying Slot Mating Flange	Tin-Lead	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	10	29.5 Áin	0.75 Ám	Header		3 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.128 "	3.25 mm							7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin
Harwin Inc. M80-500000000-08-315-00-000						Mating Flange Polarizing Key			Free Hanging (In-Line)				1			Coaxial Male Pin		8			Plug													Coaxial	Crimp	Gold	4 mm	0.157 in	Black			Push-Pull
Harwin Inc. M80-5004442	Solder	-55 °C	125 °C	800 VAC	Circular	Keying Slot Mating Flange	Tin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	44	29.5 Áin	0.75 Ám	Header		0.3 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.13 in	3.3 mm							7.3 mm 7.8 mm	12 µin
Harwin Inc. M80-5000842	Solder	-55 °C	125 °C	120 VDC	Circular	Keying Slot Mating Flange	Tin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	8	29.5 Áin	0.75 Ám	Header		3 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.128 "	3.25 mm							7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin
Harwin Inc. M80-5004242	Solder	-55 °C	125 °C	120 VDC	Circular	Keying Slot Mating Flange	Tin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	42	29.5 Áin	0.75 Ám	Header		3 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.128 "	3.25 mm							7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin
Harwin Inc. M80-5000000M1-12-315-00-000						Mating Flange Polarizing Key			Free Hanging (In-Line)				1			Coaxial Male Pin		12			Plug													Coaxial	Crimp	Gold	4 mm	0.157 in	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 9.68
Newark	Each	1000	$ 9.81
		2500	$ 9.59

Description

General part information

M80-500 Series

Connector Header Through Hole 44 position 0.079" (2.00mm)
