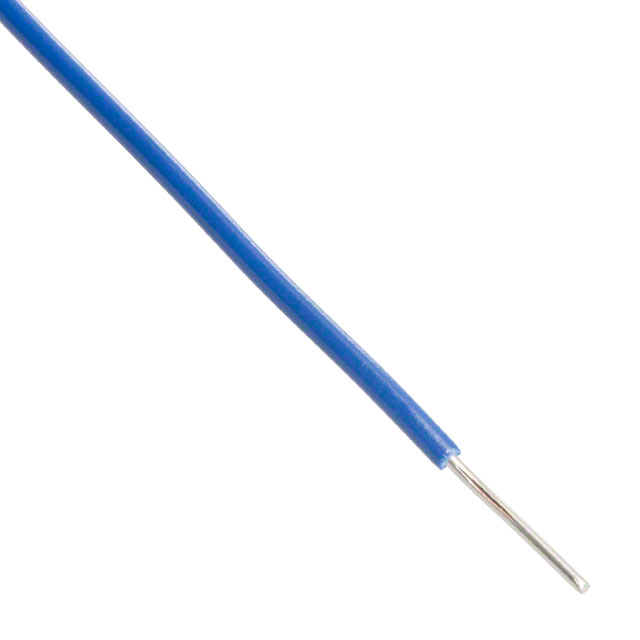

2200/22SBU-1001

Active

Daburn Electronics

HOOK-UP SOLID 22AWG BLUE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2200/22SBU-1001

Active

Daburn Electronics

HOOK-UP SOLID 22AWG BLUE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2200/22SBU-1001

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	0.054 in
Jacket (Insulation) Diameter [diameter]	1.37 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (XLPVC), Irradiated
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Blue
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Qualification	MIL-W-16878 Type B
Ratings	UL Style 1429
Voltage	600 V
Wire Gauge	22 AWG

2200/22 Series

Part	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Conductor Material	Cable Type	Jacket Color	Features	Ratings	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Length [x]	Length [x]
Daburn Electronics 2200/22GY-1000	600 V	7	30 AWG	1000 ft	304.8 m	Copper Tinned	Hook-Up	Gray	Abrasion Resistant	UL Style 1429	MIL-W-16878 Type B	105 ░C	-55 °C	0.25 mm	0.01 in	Poly-Vinyl Chloride (XLPVC) Irradiated	22 AWG	0.051 in	1.3 mm
Daburn Electronics 2200/22SBR-1000	600 V			1000 ft	304.8 m	Copper Tinned	Hook-Up	Brown	Abrasion Resistant	UL Style 1429	MIL-W-16878 Type B	105 ░C	-55 °C	0.25 mm	0.01 in	Poly-Vinyl Chloride (XLPVC) Irradiated	22 AWG	0.054 in	1.37 mm	Solid
Daburn Electronics 2200/22SRD-1000	600 V			1000 ft	304.8 m	Copper Tinned	Hook-Up	Red	Abrasion Resistant	UL Style 1429	MIL-W-16878 Type B	105 ░C	-55 °C	0.25 mm	0.01 in	Poly-Vinyl Chloride (XLPVC) Irradiated	22 AWG	0.054 in	1.37 mm	Solid
Daburn Electronics 2200/22OR-100	600 V	7	30 AWG			Copper Tinned	Hook-Up	Orange	Abrasion Resistant	UL Style 1429	MIL-W-16878 Type B	105 ░C	-55 °C	0.25 mm	0.01 in	Poly-Vinyl Chloride (XLPVC) Irradiated	22 AWG	0.051 in	1.3 mm		30.5 m	100 ft
Daburn Electronics 2200/22SVI-1000	600 V			1000 ft	304.8 m	Copper Tinned	Hook-Up	Violet	Abrasion Resistant	UL Style 1429	MIL-W-16878 Type B	105 ░C	-55 °C	0.25 mm	0.01 in	Poly-Vinyl Chloride (XLPVC) Irradiated	22 AWG	0.054 in	1.37 mm	Solid
Daburn Electronics 2200/22SGR-1000	600 V			1000 ft	304.8 m	Copper Tinned	Hook-Up	Green	Abrasion Resistant	UL Style 1429	MIL-W-16878 Type B	105 ░C	-55 °C	0.25 mm	0.01 in	Poly-Vinyl Chloride (XLPVC) Irradiated	22 AWG	0.054 in	1.37 mm	Solid
Daburn Electronics 2200/22VI-1000	600 V	7	30 AWG	1000 ft	304.8 m	Copper Tinned	Hook-Up	Violet	Abrasion Resistant	UL Style 1429	MIL-W-16878 Type B	105 ░C	-55 °C	0.25 mm	0.01 in	Poly-Vinyl Chloride (XLPVC) Irradiated	22 AWG	0.051 in	1.3 mm
Daburn Electronics 2200/22OR-1000	600 V	7	30 AWG	1000 ft	304.8 m	Copper Tinned	Hook-Up	Orange	Abrasion Resistant	UL Style 1429	MIL-W-16878 Type B	105 ░C	-55 °C	0.25 mm	0.01 in	Poly-Vinyl Chloride (XLPVC) Irradiated	22 AWG	0.051 in	1.3 mm
Daburn Electronics 2200/22GR-100	600 V	7	30 AWG			Copper Tinned	Hook-Up	Green	Abrasion Resistant	UL Style 1429	MIL-W-16878 Type B	105 ░C	-55 °C	0.25 mm	0.01 in	Poly-Vinyl Chloride (XLPVC) Irradiated	22 AWG	0.051 in	1.3 mm		30.5 m	100 ft
Daburn Electronics 2200/22SBU-1001	600 V			1000 ft	304.8 m	Copper Tinned	Hook-Up	Blue	Abrasion Resistant	UL Style 1429	MIL-W-16878 Type B	105 ░C	-55 °C	0.25 mm	0.01 in	Poly-Vinyl Chloride (XLPVC) Irradiated	22 AWG	0.054 in	1.37 mm	Solid

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.17

Description

General part information

2200/22 Series

22 AWG Hook-Up Wire Solid Blue 600V 1000.0' (304.8m)
