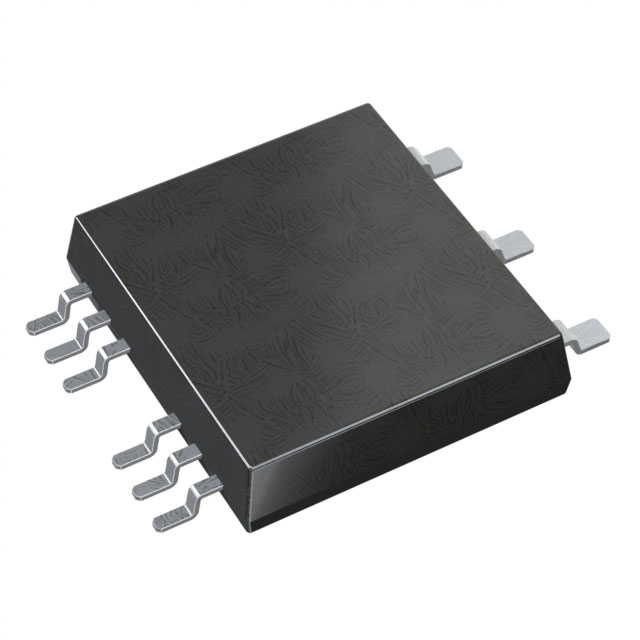

DLA100B1200LB-TRR

Active

IXYS

BRIDGE RECT 1P 1.2KV 132A SMPD.B

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 1P 1.2KV 132A SMPD.B

Technical Specifications

Parameters and characteristics for this part

Specification	DLA100B1200LB-TRR

Current - Average Rectified (Io)	132 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	9-SMD Module
Supplier Device Package	ISOPLUS-SMPD™.B
Technology	Standard
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Mounting Type	Technology	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Supplier Device Package
IXYS DLA100IM1200TZ-TUB	Surface Mount	Standard	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	20 µA	1.34 V	1.2 kV	100 A	-55 °C	150 °C	Single Phase	TO-268AA (D3Pak-HV)
IXYS DLA100B1200LB-TRR	Surface Mount	Standard	9-SMD Module	10 µA		1.2 kV	132 A	-55 °C	175 ░C	Single Phase	ISOPLUS-SMPD™.B
IXYS DLA100B1200LB-TUB	Surface Mount	Standard	9-SMD Module	10 µA		1.2 kV	132 A	-55 °C	175 ░C	Single Phase	ISOPLUS-SMPD™.B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1.2 kV Surface Mount ISOPLUS-SMPD™.B
