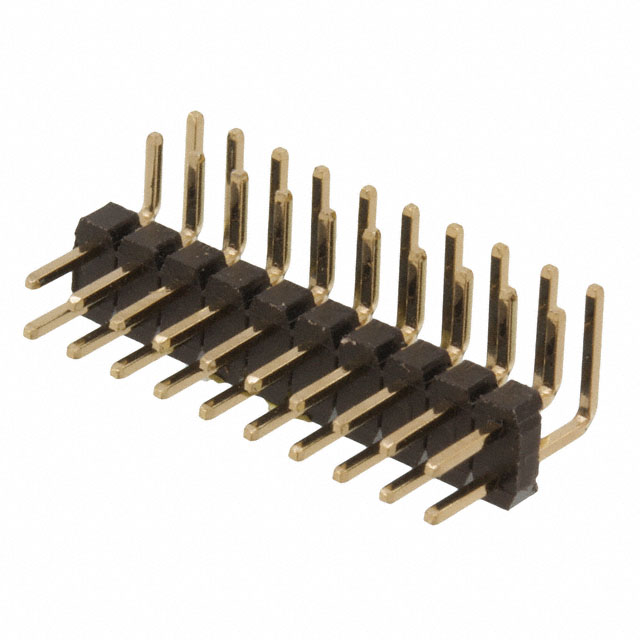

M22-2541005

Active

Harwin Inc.

CONN, HDR, 20POS, 2ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 Datasheet +1

M22-2541005

Active

Harwin Inc.

CONN, HDR, 20POS, 2ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-2541005

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

M22-254 Series

Part	Material Flammability Rating	Connector Type	Contact Material	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height [custom]	Insulation Height [custom]	Shrouding	Number of Rows	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Material	Termination	Contact Shape	Insulation Color	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Positions
Harwin Inc. M22-2540905	UL94 V-0	Cuttable Header	Phosphor Bronze	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	0.157 in	4 mm	Unshrouded	2	All	0.094 in	2.4 mm	Male Pin	Nylon 6T Polyamide (PA6T)	Solder	Square	Black	Gold	-40 °C	105 ░C	18	2 A	Through Hole Right Angle	0.138 in	3.5 mm
Harwin Inc. M22-2540505	UL94 V-0	Cuttable Header	Phosphor Bronze	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	0.157 in	4 mm	Unshrouded	2	All	0.094 in	2.4 mm	Male Pin	Nylon 6T Polyamide (PA6T)	Solder	Square	Black	Gold	-40 °C	105 ░C	10	2 A	Through Hole Right Angle	0.138 in	3.5 mm
Harwin Inc. M22-2540546	UL94 V-0	Cuttable Header	Phosphor Bronze	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	0.157 in	4 mm	Unshrouded	2	All	0.094 in	2.4 mm	Male Pin	Nylon 6T Polyamide (PA6T)	Solder	Square	Black		-40 °C	105 ░C	10	2 A	Through Hole Right Angle	0.138 in	3.5 mm	Tin
Harwin Inc. M22-2541005	UL94 V-0	Cuttable Header	Phosphor Bronze	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	0.157 in	4 mm	Unshrouded	2	All	0.094 in	2.4 mm	Male Pin	Nylon 6T Polyamide (PA6T)	Solder	Square	Black	Gold	-40 °C	105 ░C	20	2 A	Through Hole Right Angle	0.138 in	3.5 mm
Harwin Inc. M22-2541305	UL94 V-0	Cuttable Header	Phosphor Bronze	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	0.157 in	4 mm	Unshrouded	2	All	0.094 in	2.4 mm	Male Pin	Nylon 6T Polyamide (PA6T)	Solder	Square	Black	Gold	-40 °C	105 ░C	26	2 A	Through Hole Right Angle	0.138 in	3.5 mm
Harwin Inc. M22-2540805	UL94 V-0	Cuttable Header	Phosphor Bronze	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	0.157 in	4 mm	Unshrouded	2	All	0.094 in	2.4 mm	Male Pin	Nylon 6T Polyamide (PA6T)	Solder	Square	Black	Gold	-40 °C	105 ░C		2 A	Through Hole Right Angle	0.138 in	3.5 mm		16
Harwin Inc. M22-2540405	UL94 V-0	Cuttable Header	Phosphor Bronze	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	0.157 in	4 mm	Unshrouded	2	All	0.094 in	2.4 mm	Male Pin	Nylon 6T Polyamide (PA6T)	Solder	Square	Black	Gold	-40 °C	105 ░C	8	2 A	Through Hole Right Angle	0.138 in	3.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.64
		10	$ 1.42
		300	$ 1.15
		600	$ 1.06
		1200	$ 0.91
		5100	$ 0.81
		10200	$ 0.79
Newark	Each	1	$ 1.53
		10	$ 1.24
		100	$ 1.14
		250	$ 1.03
		500	$ 0.92
		1000	$ 0.86
		2500	$ 0.81
