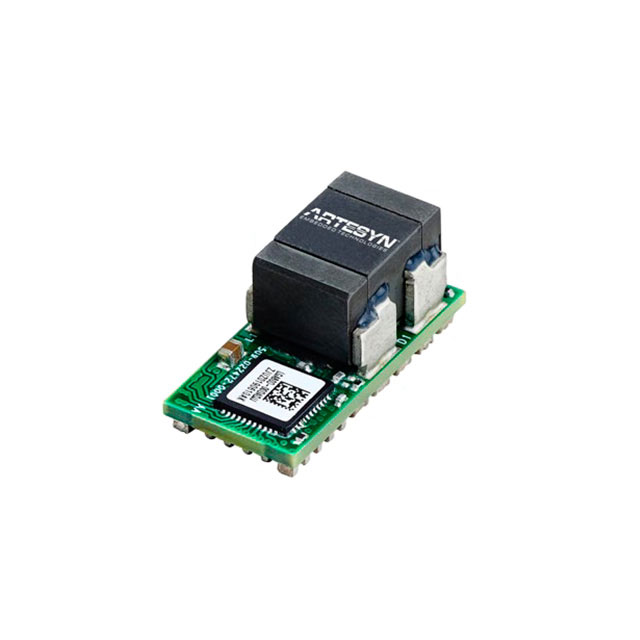

LGA80D-00DADJJ

Active

ARTESYN / Advanced Energy

DC DC CNVRTR 0.6-5.2V 0.6-5.2V

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

DC DC CNVRTR 0.6-5.2V 0.6-5.2V

Technical Specifications

Parameters and characteristics for this part

Specification	LGA80D-00DADJJ

Applications	ITE (Commercial)
Current - Output (Max)	40 A
Efficiency	95.5 %
Features	OVP, OCP, OTP, Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	28-SMD Module
Size / Dimension [x]	25.4 mm
Size / Dimension [x]	1 in
Size / Dimension [y]	0.5 in
Size / Dimension [y]	12.7 mm
Size / Dimension [z]	0.48 in
Size / Dimension [z]	12.2 mm
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	7 V
Voltage - Output 1 [Max]	5.2 V
Voltage - Output 1 [Min]	0.6 V
Voltage - Output 2 [Max]	5.2 V
Voltage - Output 2 [Min]	0.6 V

Part	Current - Output (Max)	Efficiency	Number of Outputs	Type	Package / Case	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Voltage - Output 2 [Min]	Voltage - Output 2 [Max]	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Applications
ARTESYN / Advanced Energy LGA80D-00DADJJ	40 A	95.5 %	2	Non-Isolated PoL Module Digital	28-SMD Module	14 V	7 V	85 °C	-40 °C	0.6 V	5.2 V	Surface Mount	0.6 V	5.2 V	OCP OTP OVP Remote On/Off	0.5 in	12.7 mm	25.4 mm	0.48 in	12.2 mm	1 in	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 2 Output 0.6 ~ 5.2V 0.6 ~ 5.2V 40A, 40A 7V - 14V Input
