857-025-457-101
ActiveEDAC Inc.

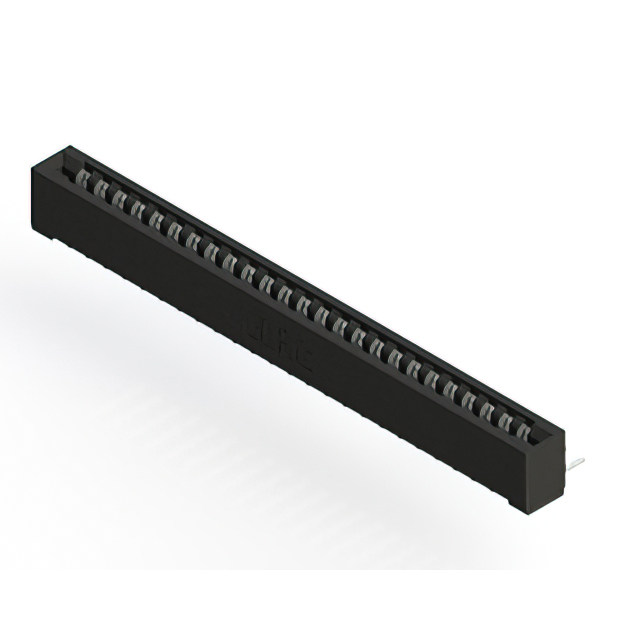

CONN EDGE DUAL FMALE 50POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-025-457-101
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-025-457-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
857-025 Series
...
| Part | Contact Material | Color | Material - Insulation | Number of Rows | Termination | Read Out | Card Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Rows | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Finish | Number of Positions/Bay/Row [custom] | Gender | Flange Feature | Flange Feature | Number of Positions | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Black | Polyphenylene Sulfide (PPS) | 1 | Solder | Single | Non Specified - Single Edge | Semi Bellows | 125 °C | -40 °C | Through Hole Right Angle | 1 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Tin | 25 | Female | |||||
EDAC Inc. | Copper Alloy | Black | Polyphenylene Sulfide (PPS) | 1 | Wire Wrap | Single | Non Specified - Single Edge | Semi Bellows | 125 °C | -40 °C | Through Hole | 1 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Tin | 25 | Female | 3.25 mm | 0.128 in | |||||
EDAC Inc. | Copper Alloy | Black | Polyphenylene Sulfide (PPS) | 1 | Solder | Single | Non Specified - Single Edge | Semi Bellows | 125 °C | -40 °C | Through Hole Right Angle | 1 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 25 | Female | ||||||||
EDAC Inc. | Copper Alloy | Black | Polyphenylene Sulfide (PPS) | 2 | Solder | Dual | Non Specified - Dual Edge | Semi Bellows | 125 °C | -40 °C | Through Hole Right Angle | 1 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 25 | Female | 50 | |||||||
EDAC Inc. | Copper Alloy | Black | Polyphenylene Sulfide (PPS) | 2 | Solder | Dual | Non Specified - Dual Edge | Semi Bellows | 125 °C | -40 °C | Through Hole Right Angle | 1 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Gold | 25 | Female | 50 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Copper Alloy | Black | Polyphenylene Sulfide (PPS) | 1 | Solder | Single | Non Specified - Single Edge | Semi Bellows | 125 °C | -40 °C | Through Hole Right Angle | 1 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Gold | 25 | Female | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Copper Alloy | Black | Polyphenylene Sulfide (PPS) | 2 | Solder | Dual | Non Specified - Dual Edge | Semi Bellows | 125 °C | -40 °C | Through Hole | 1 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Tin | 25 | Female | 50 | ||||||
EDAC Inc. | Copper Alloy | Black | Polyphenylene Sulfide (PPS) | 1 | Solder | Single | Non Specified - Single Edge | Semi Bellows | 125 °C | -40 °C | Through Hole | 1 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Tin | 25 | Female | |||||||
EDAC Inc. | Copper Alloy | Black | Polyphenylene Sulfide (PPS) | 2 | Solder | Dual | Non Specified - Dual Edge | Semi Bellows | 125 °C | -40 °C | Through Hole Right Angle | 1 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 25 | Female | 50 | |||||||
EDAC Inc. | Copper Alloy | Black | Polyphenylene Sulfide (PPS) | 2 | Solder Eyelet(s) | Dual | Non Specified - Dual Edge | Semi Bellows | 125 °C | -40 °C | Through Hole | 1 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 25 | Female | 50 | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 168.00 | |
Description
General part information
857-025 Series
50 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
