CCK18S-90
ActiveVector Electronics

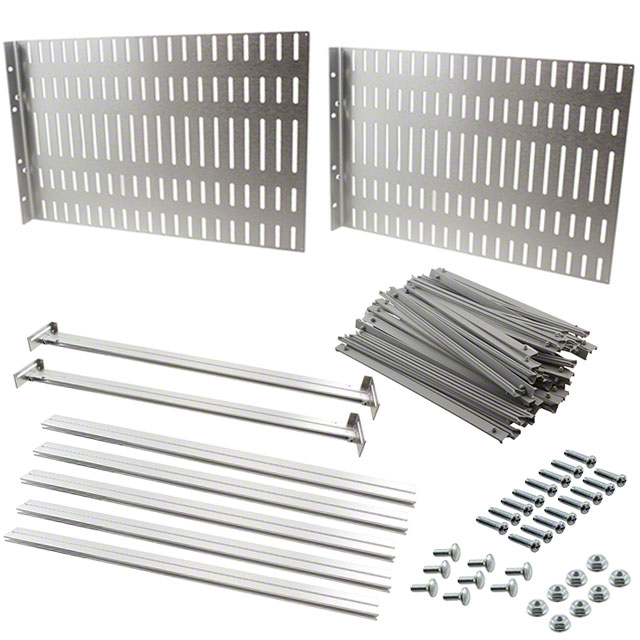

SUBRACK KIT ALUM 15.75X19 SNAP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCK18S-90
ActiveVector Electronics
SUBRACK KIT ALUM 15.75X19 SNAP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CCK18S-90 |
|---|---|
| Card Size Range [Max] [z] | 247.65 mm |
| Card Size Range [Max] [z] | 9.75 in |
| Card Size Range [Min] [z] | 196.85 mm |
| Card Size Range [Min] [z] | 7.75 in |
| Card Size Range [x] | 342.9 mm |
| Card Size Range [x] | 13.5 in |
| Guide Method | Card Guide |
| Height [z] | 6U |
| Height [z] | 266.7 mm |
| Height [z] | 266.7 mm |
| Material | Aluminum |
| Size / Dimension [x] | 15.75 in |
| Size / Dimension [x] | 400.05 mm |
| Size / Dimension [y] | 19 in |
| Size / Dimension [y] | 482.6 mm |
| Type | Subrack Kit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 243.28 | |
| 5 | $ 238.93 | |||
| 10 | $ 234.59 | |||
| 25 | $ 231.11 | |||
Description
General part information
CCK18S Series
Aluminum Subrack Kit 6U = 10.500" (266.70mm)
