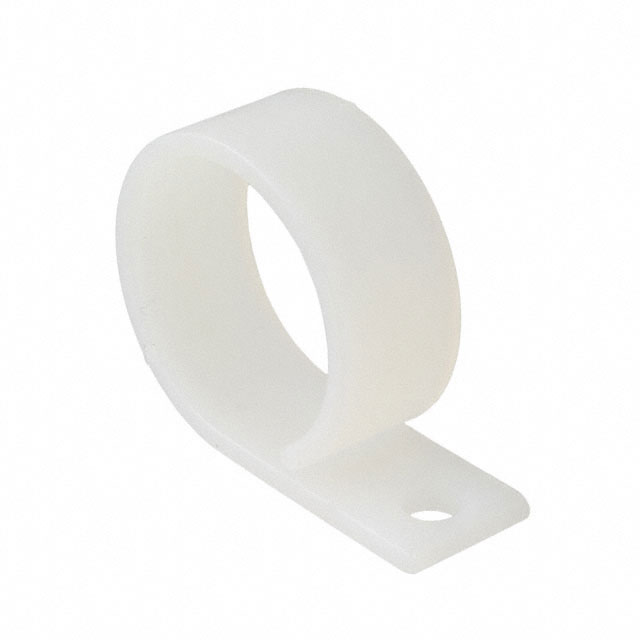

WHC-1000-01

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 25.4 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 38.9 MM, 12.7 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 25.4 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 38.9 MM, 12.7 MM

Technical Specifications

Parameters and characteristics for this part

Specification	WHC-1000-01

Color	Natural
Length	1.531 in
Length	38.89 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.09 in
Material Thickness	2.29 mm
Mounting Type	Fastener
Opening Size [custom]	1 in
Opening Size [custom]	25.4 mm
Panel Hole Size	5.18 mm
Panel Hole Size [diameter]	0.204 in
Screw Size	M5
Screw Size	#10
Type	Clip, P-Type
Type Attributes	Open

Part	Material Flammability Rating	Screw Size	Screw Size	Type	Material Thickness	Material Thickness	Panel Hole Size [diameter]	Panel Hole Size	Opening Size [custom]	Opening Size [custom]	Type Attributes	Material	Length	Length	Color	Mounting Type
Essentra Access Solutions WHC-1000-01	UL94 V-2	M5	#10	Clip P-Type	0.09 in	2.29 mm	0.204 in	5.18 mm	1 in	25.4 mm	Open	Polyamide (PA66) Nylon 6/6	1.531 in	38.89 mm	Natural	Fastener

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, P-Type Natural Fastener 1.000" (25.40mm)
