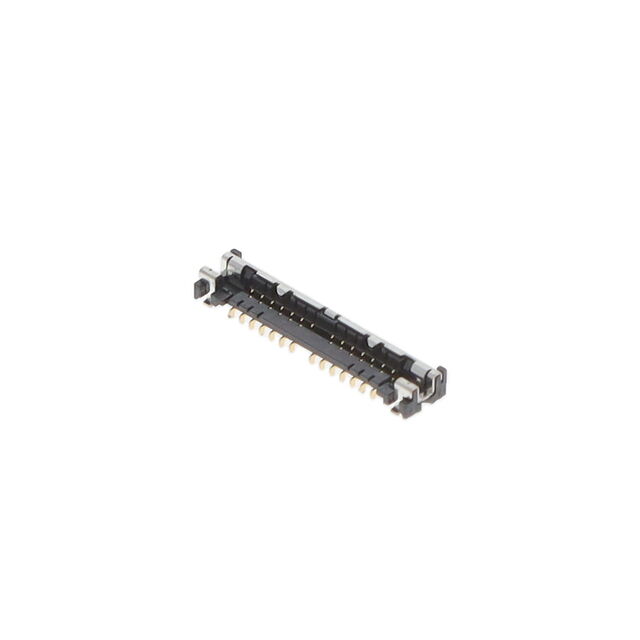

DF56C-26S-0.3V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 26POS 0.012 GOLD SMD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 26POS 0.012 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	DF56C-26S-0.3V(51)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Finish Thickness - Post	2 µin
Contact Finish Thickness - Post	0.051 µm
Contact Material	Phosphor Bronze
Contact Type	Non-Gendered
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Friction Lock
Features	Grounding Tab
Insulation Color	Black
Insulation Height	0.057 in
Insulation Height	1.45 mm
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.3 mm
Pitch - Mating	0.012 "
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	30 VAC

Part	Insulation Height	Insulation Height	Connector Type	Material Flammability Rating	Contact Type	Insulation Material	Contact Finish - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Rows	Number of Positions	Features	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Number of Positions Loaded	Contact Material	Termination	Style	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color
Hirose Electric USA, Inc. DF56C-40S-0.3V(51)	0.057 in	1.45 mm	Receptacle	UL94 V-0	Non-Gendered	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Varies by Wire Gauge	0.3 mm	0.012 "	Friction Lock	1	40	Grounding Tab	30 VAC	0.099 µm	3.9 µin	2 µin	0.051 µm	Surface Mount	Gold	All	Phosphor Bronze	Solder	Board to Cable/Wire	-35 °C	85 °C	Black
Hirose Electric USA, Inc. DF56C-50S-0.3V(51)	0.057 in	1.45 mm	Receptacle	UL94 V-0	Non-Gendered	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Varies by Wire Gauge	0.3 mm	0.012 "	Friction Lock	1	50	Grounding Tab	30 VAC	0.099 µm	3.9 µin	2 µin	0.051 µm	Surface Mount	Gold	All	Phosphor Bronze	Solder	Board to Cable/Wire	-35 °C	85 °C	Black
Hirose Electric USA, Inc. DF56C-26S-0.3V(51)	0.057 in	1.45 mm	Receptacle	UL94 V-0	Non-Gendered	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Varies by Wire Gauge	0.3 mm	0.012 "	Friction Lock	1	26	Grounding Tab	30 VAC	0.099 µm	3.9 µin	2 µin	0.051 µm	Surface Mount	Gold	All	Phosphor Bronze	Solder	Board to Cable/Wire	-35 °C	85 °C	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Receptacle Connector 0.012" (0.30mm) Surface Mount Gold
