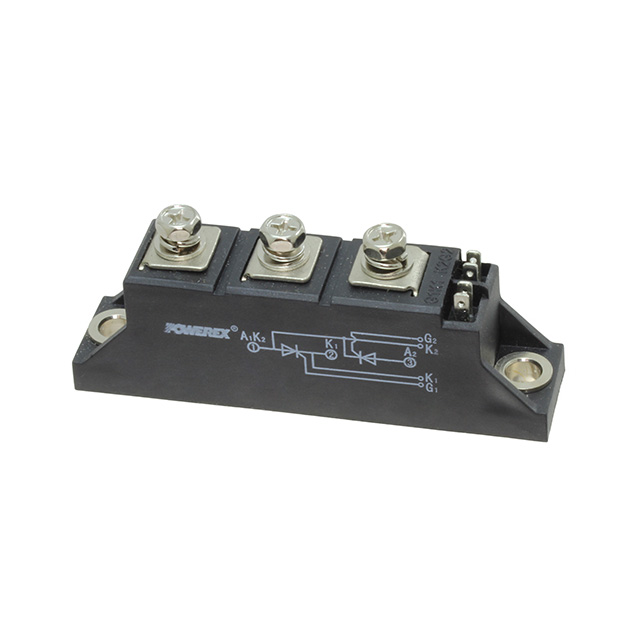

CD431699C

Active

Powerex Inc.

SCR MODULE DUAL

Search across all available documentation for this part.

Active

Powerex Inc.

SCR MODULE DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	CD431699C

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	2400 A
Current - On State (It (AV)) (Max)	110 A
Current - On State (It (RMS)) (Max) [Max]	173 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	POW-R-BLOK™ Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.6 kV

Part	Structure	Current - On State (It (AV)) (Max)	Current - On State (It (RMS)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Voltage - Off State	Package / Case	Current - Hold (Ih) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Number of SCRs, Diodes	Current - Gate Trigger (Igt) (Max) [Max] [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Powerex Inc. CD431699C	Series Connection - All SCRs	110 A	173 A	2.5 V	1.6 kV	POW-R-BLOK™ Module	150 mA	2400 A	2 SCRs	100 mA	-40 °C	125 ¯C	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 1.6 kV 173 A Series Connection - All SCRs Chassis Mount POW-R-BLOK™ Module
