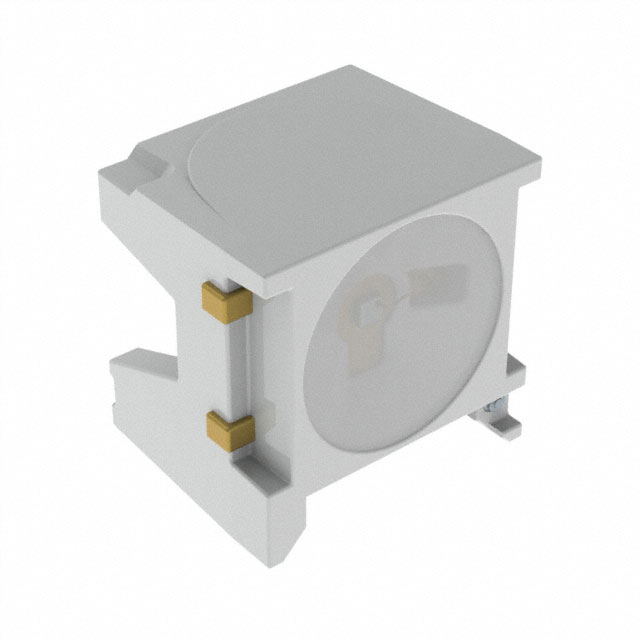

LS B6SP-CBEA-1-G3R3-140-R33-Z
Activeams-OSRAM USA INC.
LED RED CLEAR 2PLCC SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LS B6SP-CBEA-1-G3R3-140-R33-Z
Activeams-OSRAM USA INC.
LED RED CLEAR 2PLCC SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LS B6SP-CBEA-1-G3R3-140-R33-Z |
|---|---|
| Color | Red |
| Current - Test | 140 mA |
| Height (Max) [Max] [z] | 3.8 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 3.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 6275 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, Boomerang |
| Size / Dimension [x] | 4.6 mm |
| Size / Dimension [y] | 4.6 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.15 V |
| Wavelength - Dominant | 630 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.29 | |
| 10 | $ 0.80 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.29 | ||
| 10 | $ 0.80 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.45 | |||
| Tape & Reel (TR) | 1200 | $ 0.42 | ||
| 2400 | $ 0.39 | |||
| 3600 | $ 0.38 | |||
| 6000 | $ 0.37 | |||
| 8400 | $ 0.36 | |||
| 12000 | $ 0.36 | |||
Description
General part information
LSB6SP Series
Red 630nm LED Indication - Discrete 2.15V 2-SMD, Boomerang
